Overview
11
Orbi High-Performance AC3000 Tri-band WiFi System

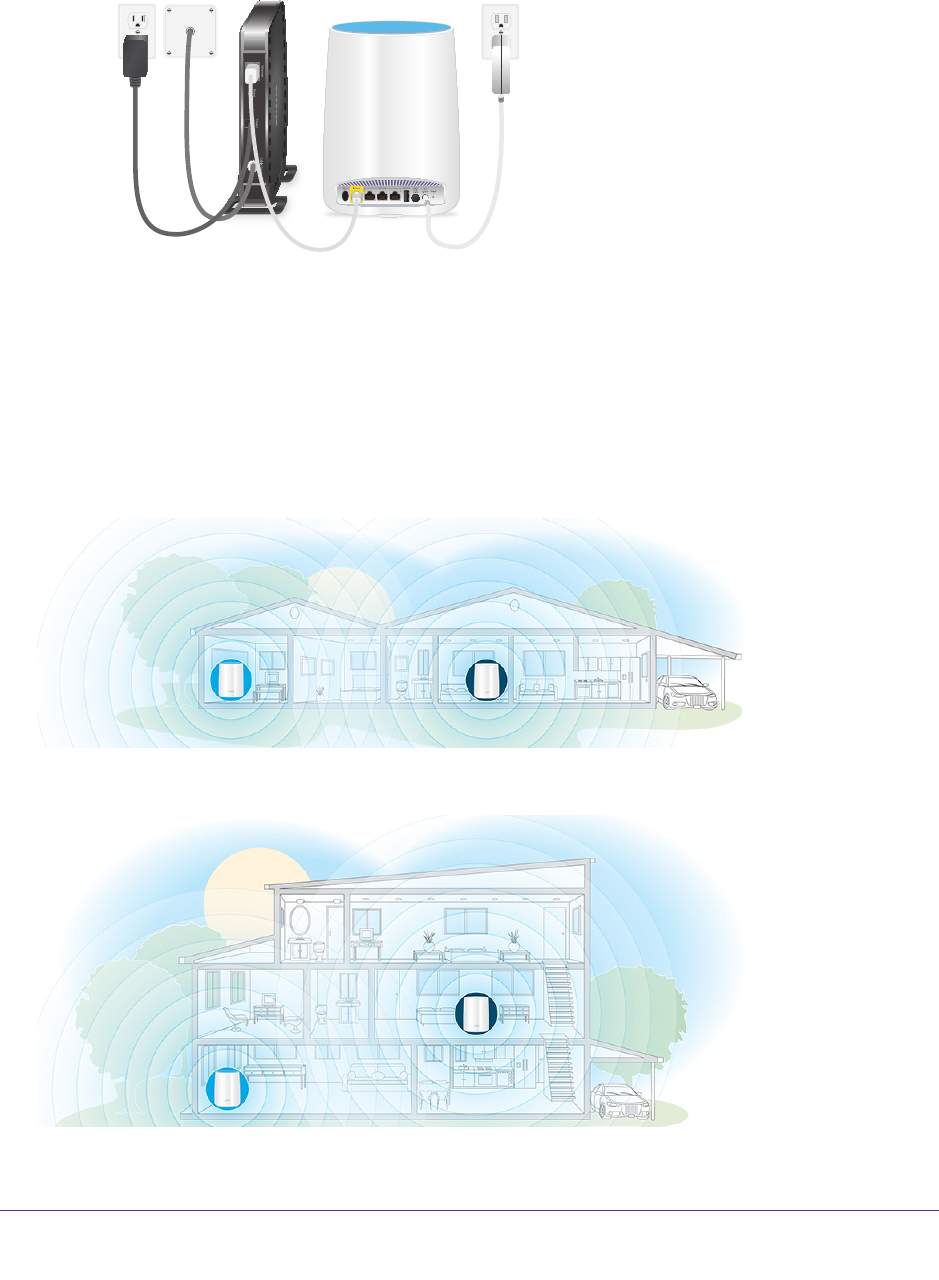

3. Connect your modem to the Internet port of your router with the yellow Ethernet cable that
came with your router.
4. Connect the power adapter to your router and plug the power adapter into an outlet.
5. If the Power LED does not light, press the Power On/Off button on the rear panel of the
router
.
Place Your Satellite
We recommend that you place your satellite in the middle of your home.
Figure 2. Single-story house with the Orbi satellite placed in the center
Figure 3. Multilevel house with the Orbi satellite placed upstairs
