Use VPN to Access Your Network
103
Orbi High-Performance AC3000 Tri-band WiFi System
Set Up a VPN Connection
A virtual private network (VPN) lets you use the Internet to securely access your network
when you aren’t home.
Secure
remote access
Internet
Open VPN
Client

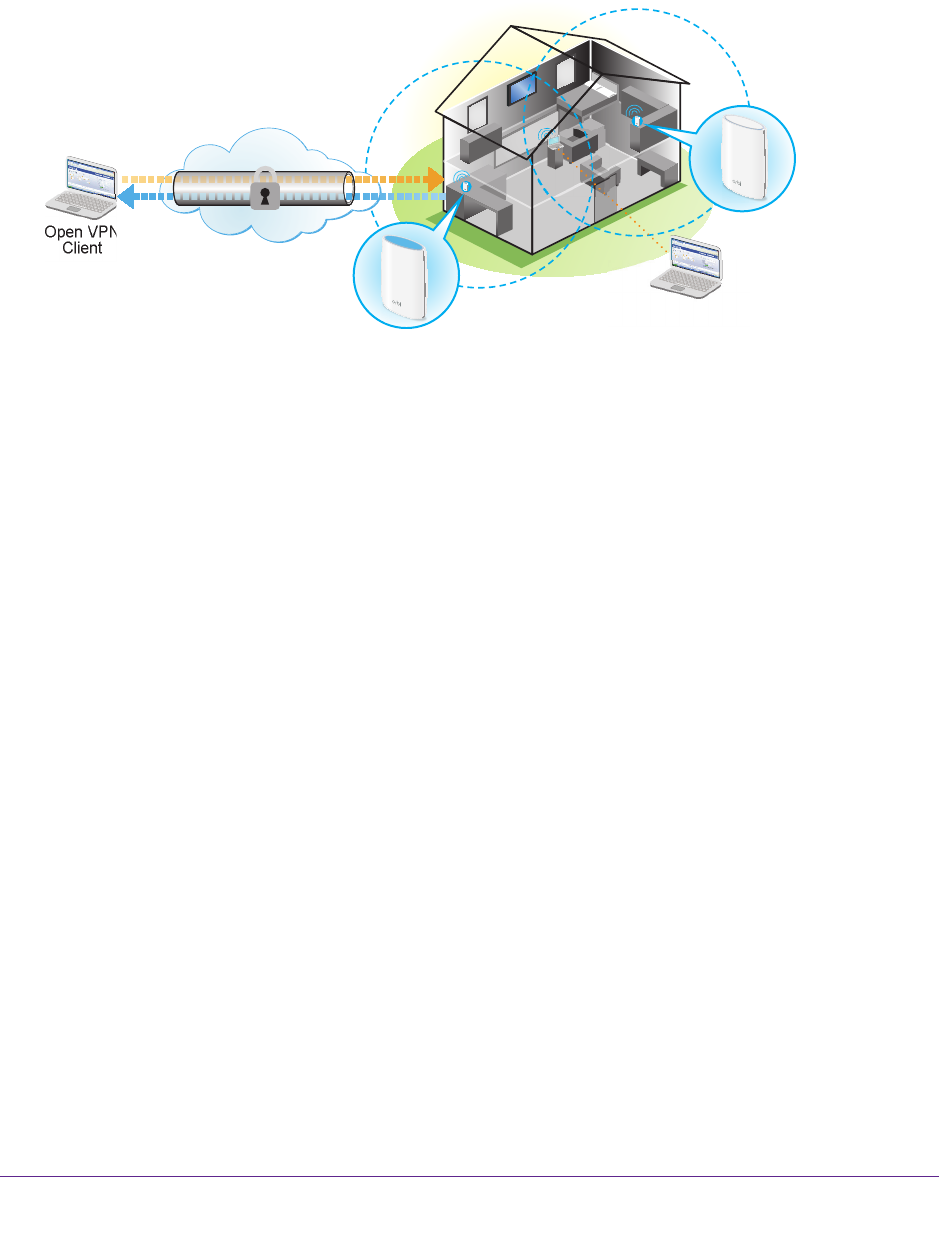

Figure 7. VPN provides a secure tunnel between your home network and a remote computer
This type of VPN access is called a client-to-gateway tunnel. The computer is the client, and
the router is the gateway. To use the VPN feature, you must log in to the router and enable
VPN, and you must install and run VPN client software on the computer.
VPN uses DDNS or a static IP address to connect with your router.
To use a DDNS service, register for an account with a host name (sometimes called a
domain name). You use the host name to access your network. The router supports these
accounts: NETGEAR, No-IP, and Dyn.
If your Internet service provider (ISP) assigned a static WAN IP address (such as 50.196.x.x
or 10.x.x.x) that never changes to your Internet account, the VPN can use that IP address to
connect to your home network.
Specify VPN Service in the Router
You must specify the VPN service settings in the router before you can use a VPN
connection.
To specify the VPN service:
1. Launch a web browser from a WiFi-enabled computer or mobile device that is
connected to the network.
2. Enter orbilogin.com.
A login window opens.
3. Enter the router user name and password.
The user name is admin.
The default password is password. The user name and
password are case-sensitive.
