Share Storage Devices Attached to the Router
74
Nighthawk X4 AC2350 Smart WiFi Router
The user name (account name) for All–no password is guest. The password for admin is
the same one that is used to log in to the router. By default, it is password.
8. Click the Apply button.
The folder is added on the storage device.
Edit a Network Folder on a Storage Device
You can edit network folders on storage devices connected to the router USB ports and
eSATA port.
To edit a network folder:
1. Launch a web browser from a computer or wireless device that is connected to the
network.
2. T
ype http://www.routerlogin.net or http://www.routerlogin.com.
A login screen displays.
3. Enter the router user name and password.
The user name is admin.
The default password is password. The user name and
password are case-sensitive.
The BASIC Home screen displays.
4. Select ADV
ANCED > ReadySHARE> Advanced Settings.
5. Click the Edit button.

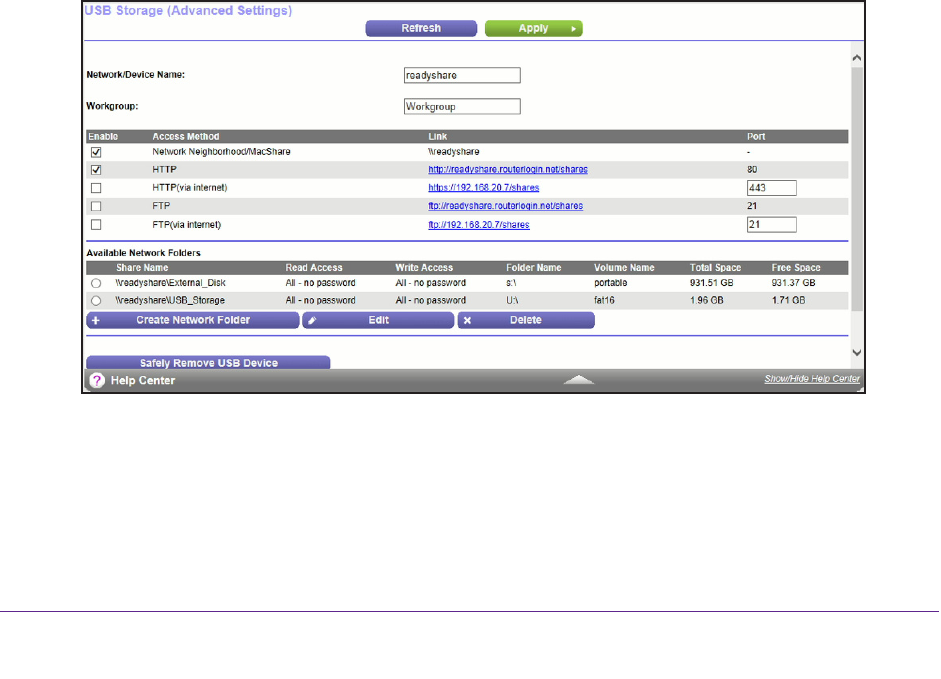

The Edit Network Folder screen displays.
6. Change the settings in the fields as needed.
7. Click the Apply button.
