Share Storage Devices Attached to the Router
72
Nighthawk X4 AC2350 Smart WiFi Router
The user name is admin. The default password is password. The user name and
password are case-sensitive.
The BASIC Home screen displays.
4. Select ADV
ANCED > ReadySHARE > Advanced Settings.

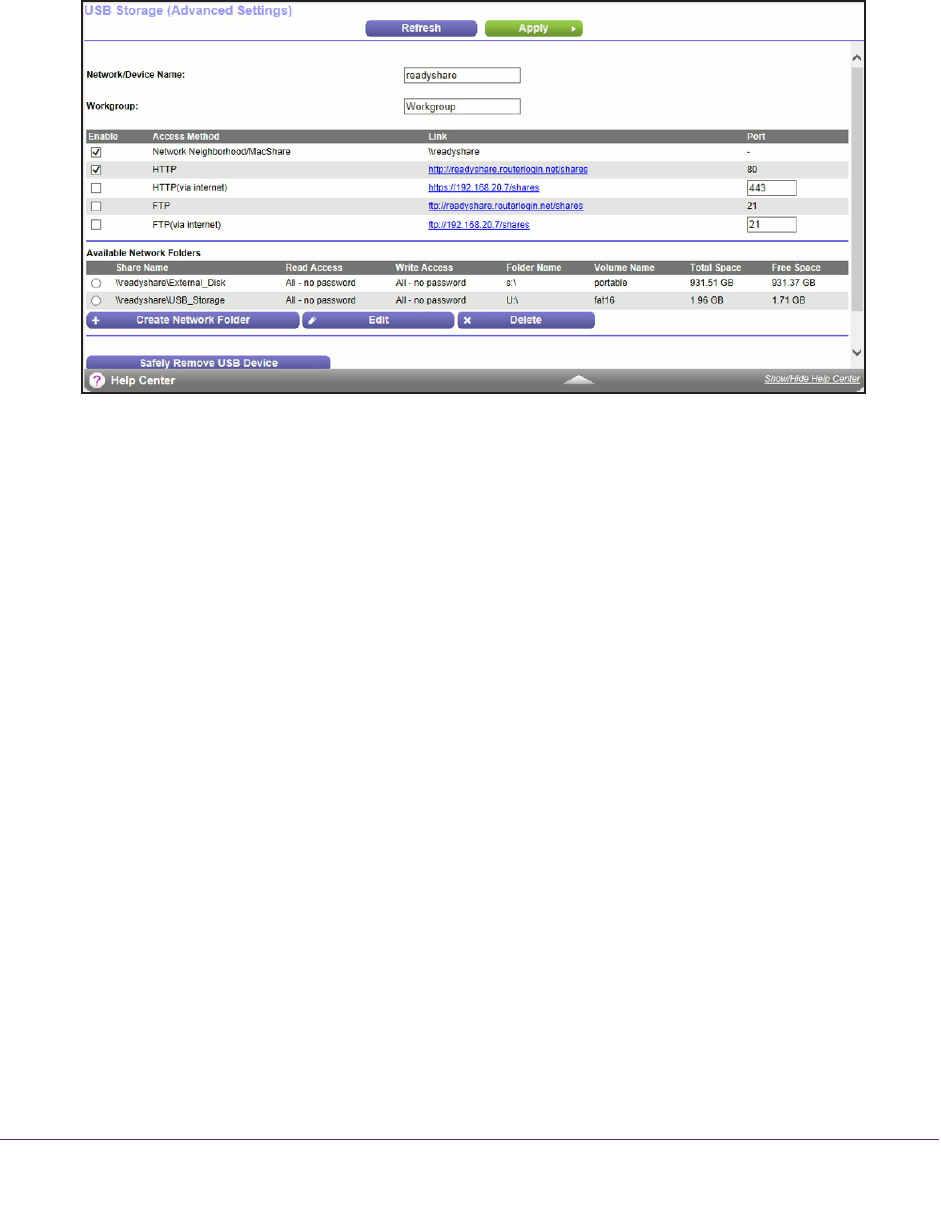

5. Scroll down to the Available Networks Folder section of the screen and adjust the following
settings:
• Share Name. If only one USB device is connected, the default share name is
USB_Storage.
The default share name for an eSATA device is External_Disk.
You can click the name or you can type it in the address field of your web browser. If
Not Shared is shown, the default share was deleted and no other share for the root
folder exists. Click the link to change this setting.
• Read
Access and Write Access. Show the permissions and access controls on the
network folder. All–no password (the default) allows all users to access the network
folder. The password for admin is the same one that you use to log in to the router.
• Folder Name. Full path of the network folder
.
• V
olume Name. Volume name from the storage device.
• T
otal Space and Free Space. Show the current utilization of the storage device.
Add a Network Folder on a Storage Device
You can add network folders on a storage device connected to the router USB ports and
eSATA port.
To add a network folder:
1. Launch a web browser from a computer or wireless device that is connected to the
network.
