Specify Your Internet Settings
32
Nighthawk X4 AC2350 Smart WiFi Router

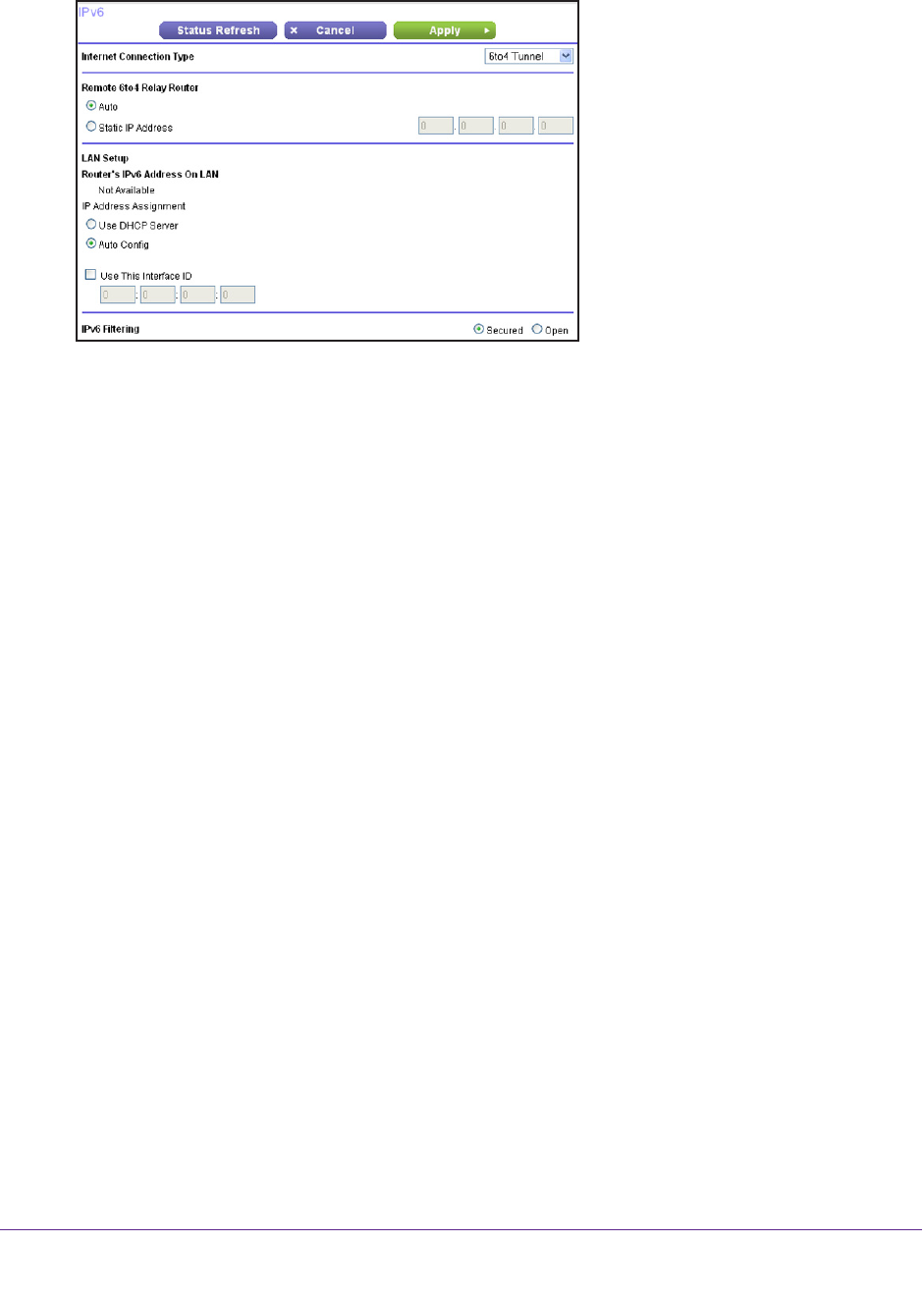

The screen adjusts:
The router automatically detects the information in the Router’s IPv6 Address on LAN
field. This field shows the IPv6 address that is acquired for the router’s LAN interface. The
number after the slash (/) is the length of the prefix, which is also indicated by the
underline (_) under the IPv6 address. If no address is acquired, the field displays Not
Available.
6. Configure the remote 6to4 relay router settings by selecting one of the following radio
buttons:
• Auto.
Your router uses any remote relay router that is available on the Internet. This
is the default setting.
• Static IP
Address. Enter the static IPv4 address of the remote relay router. Your IPv6
ISP usually provides this address.
7. Select an IP
Address Assignment radio button:
• Use DHCP Server.
This method passes more information to LAN devices but some
IPv6 systems might not support the DHCv6 client function.
• Auto Config.
This is the default setting.
This setting specifies how the router assigns IPv6 addresses to the devices on your home
network (the LAN).
8. (Optional) Select the Use This Interface ID check box and specify the interface ID to be
used for the IPv6 address of the router’
s LAN interface.
If you do not specify an ID here, the router generates one automatically from its MAC
address.
9. Click the Apply button.
Your settings are saved.
