Specify Internet Port Settings
154
Nighthawk X4 AC2350 Smart WiFi Router

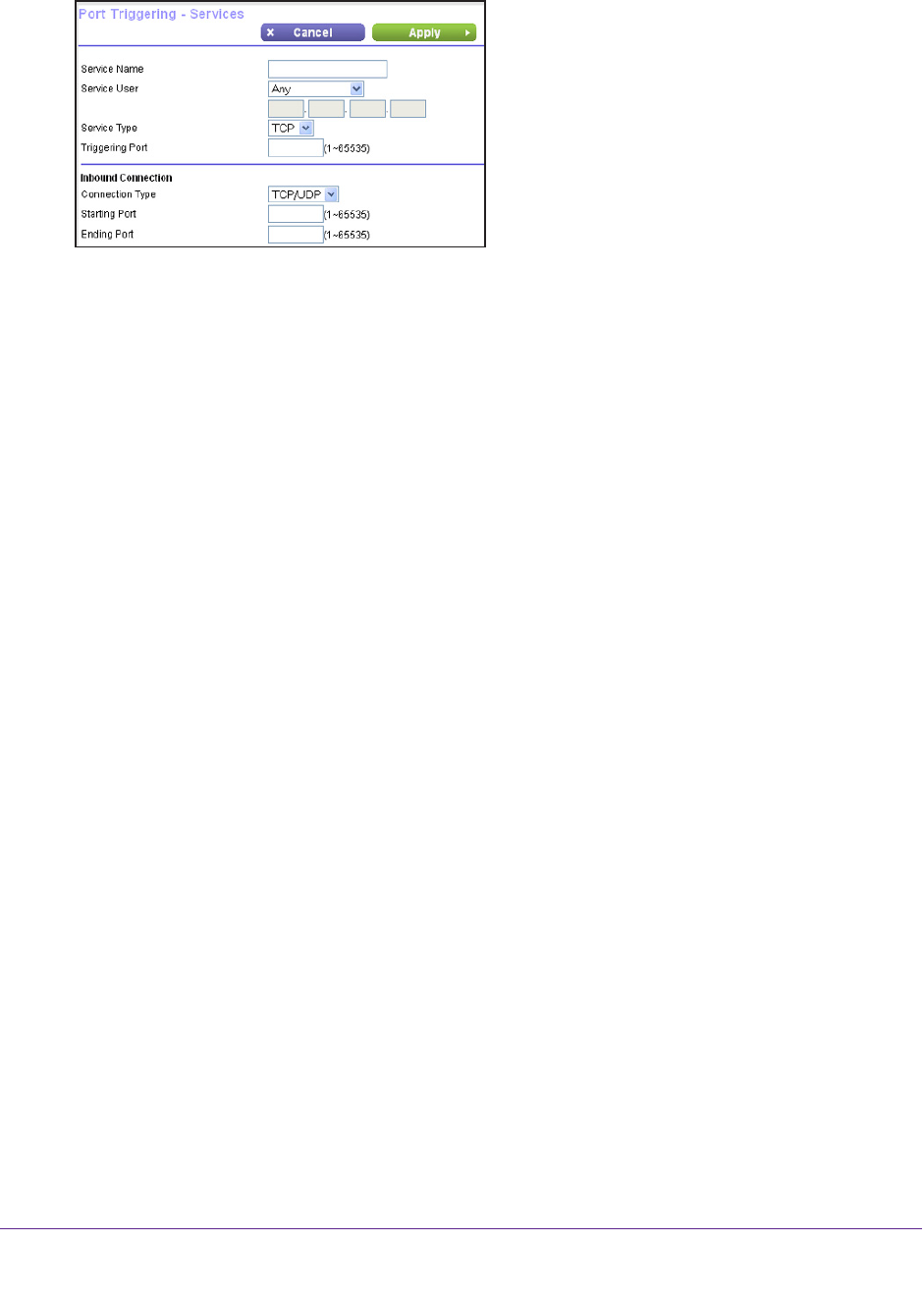

6. Click the Add Service button.
7. In the Service Name field, type a descriptive service name.
8. From the Service User list, select a user option:
• Any (the default) allows any computer on the Internet to use this service.
• Single address restricts the service to a particular computer
.
9. From the Service T
ype list, select TCP or UDP or TCP/UDP (both).
If you are not sure, select TCP/UDP.
10. In the T
riggering Port field, enter the number of the outbound traffic port that will open the
inbound ports.
11. In the Connection T
ype, Starting Port, and Ending Port fields, enter the inbound
connection information.
12. Click the Apply button.
The service is now in the Portmap Table. You must enable port triggering before the
router uses port triggering. See Enable Port Triggering on page 154.
Enable Port Triggering
To enable port triggering:
1. Launch a web browser from a computer or wireless device that is connected to the
network.
2. T
ype http://www.routerlogin.net or http://www.routerlogin.com.
A login screen displays.
3. Enter the router user name and password.
The user name is admin.
The default password is password. The user name and
password are case-sensitive.
The BASIC Home screen displays.
4. Select ADV
ANCED > Advanced Setup > Port Forwarding/Port Triggering.
The Port Forwarding/Port Triggering screen displays.
