Use VPN to Access Your Network
144
Nighthawk X4 AC2350 Smart WiFi Router
information about changing these settings, see Change the LAN TCP/IP Settings on
page 119.
To open a VPN tunnel:

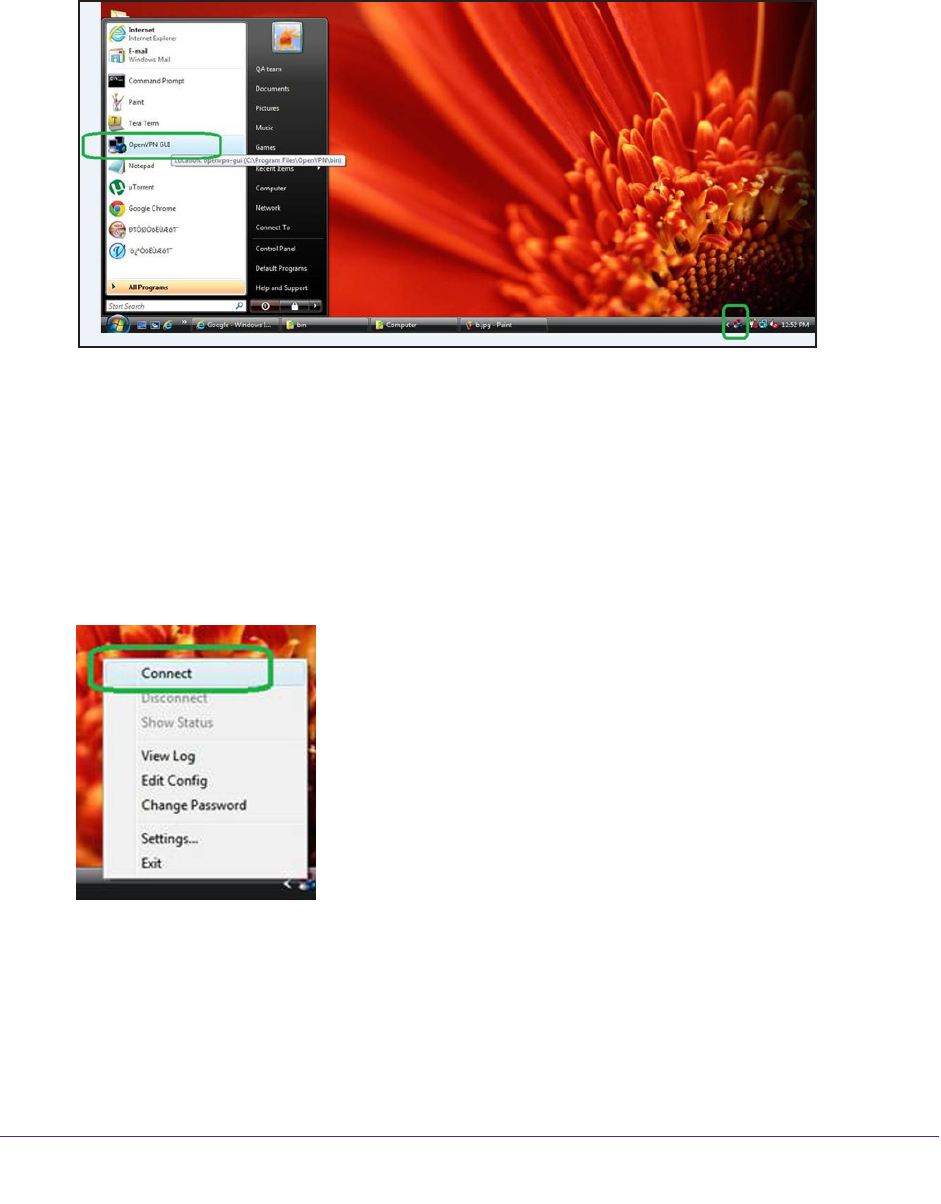

1. Launch the OpenVPN application with administrator privileges.
The OpenVPN icon displays in the Windows taskbar.
Tip: Y
ou can create a shortcut to the VPN program, then use the shortcut
to access the settings and select the run as administrator check
box.Then every time you use this shortcut, OpenVPN automatically
runs with administrator privileges.
2. Right-click the OpenVPN icon.
A menu displays:
3. Select Connect.
The VPN connection is established. You can do the following:
• Launch a web browser and log in to your router
.
• Use Windows file manager to access the router
’s USB device and download files.
