Network Settings
133
Nighthawk X4 AC2350 Smart WiFi Router
Set Up a Wireless Schedule
You can turn off the wireless signal from your router at times when you do not need a
wireless connection. For example, you might turn it off for the weekend if you leave town.
To set up the wireless schedule:
1. Launch a web browser from a computer or wireless device that is connected to the
network.
2. T
ype http://www.routerlogin.net or http://www.routerlogin.com.
A login screen displays.
3. Enter the router user name and password.
The user name is admin.
The default password is password. The user name and
password are case-sensitive.
The BASIC Home screen displays.
4. Select ADV
ANCED > Advanced Setup > Wireless Settings.

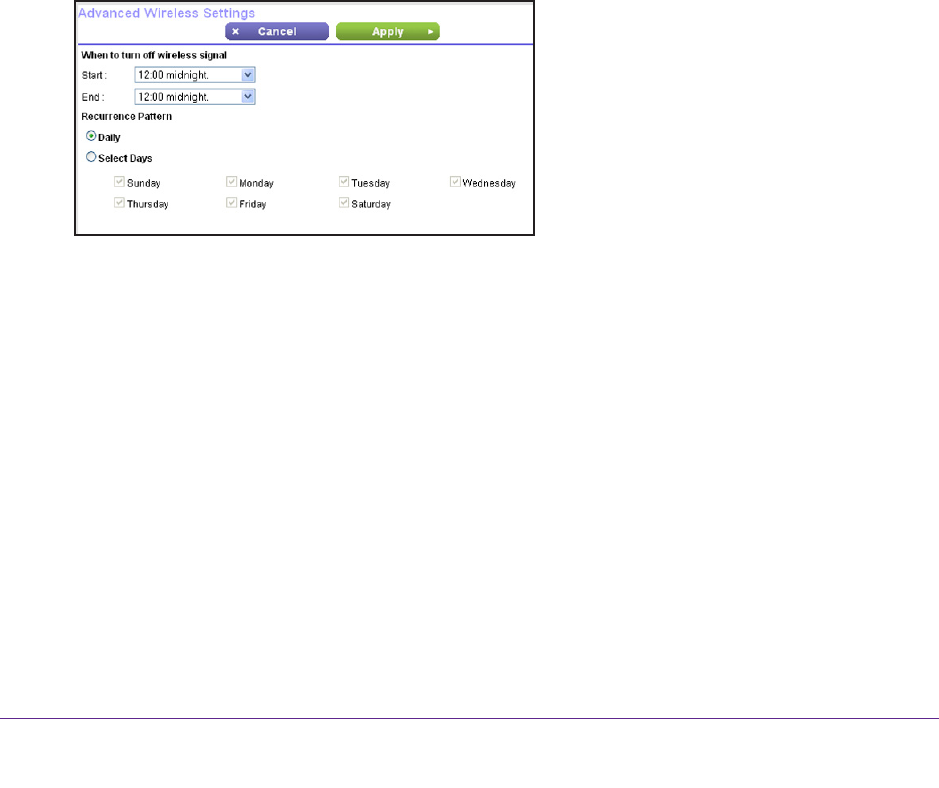

The Advanced Wireless Settings screen displays.
5. Click the Add a new period button.
6. Use the lists, radio buttons, and check boxes to set up a period during which you want to
turn off the wireless signal.
7. Click the Apply button.
The Advanced Wireless Settings screen displays.
8. Select the T
urn off wireless signal by schedule check box to activate the schedule.
9. Click the Apply button.
Your settings are saved.
Specify WPS Settings
Wi-Fi Protected Setup (WPS) lets you join the WiFi network without typing the WiFi
password.
