Manage Your Network
111
Nighthawk X4 AC2350 Smart WiFi Router
• Device Name. If the device name is known, it is shown here.
• IP Address.
The IP address that the router assigned to this device when it joined the
network. This number can change if a device is disconnected and rejoins the network.
• MAC Address.
The unique MAC address for each device does not change. The MAC
address is typically shown on the product label.
5. T
o update this screen, click the Refresh button.
Manage the Router Configuration File
The configuration settings of the router are stored within the router in a configuration file. You
can back up (save) this file to your computer, restore it, or reset it to the factory default
settings.
Back Up Settings
To back up the router’s configuration settings:
1. Launch a web browser from a computer or wireless device that is connected to the
network.
2. T
ype http://www.routerlogin.net or http://www.routerlogin.com.
A login screen displays.
3. Enter the router user name and password.
The user name is admin.
The default password is password. The user name and
password are case-sensitive.
The BASIC Home screen displays.

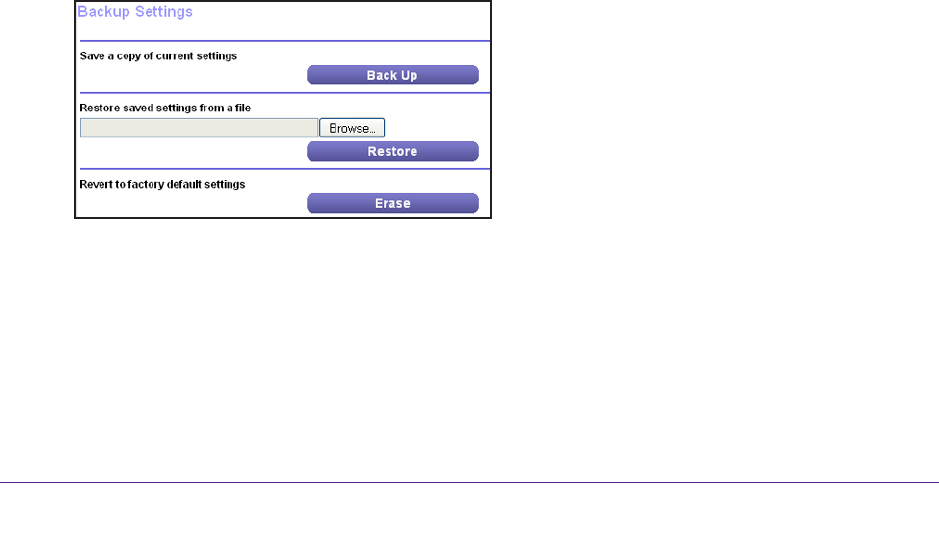

4. Select ADV
ANCED > Administration > Backup Settings.
5. Click the Back Up button.
6. Specify a
location on your network.
A copy of the current settings is saved in the location you specified.
