Manage Your Network
108
Nighthawk X4 AC2350 Smart WiFi Router
request to the company where you are employed, and the company firewall is likely to deny
the request.
In this case you must define a static route, telling your router to access 134.177.0.0 through
the ISDN router at 192.168.1.100. Here is an example:
• The Destination IP Address and IP Subnet Mask fields specify that this static route
applies to all 134.177.x.x addresses.
• The Gateway IP
Address field specifies that all traffic for these addresses will be
forwarded to the ISDN router at 192.168.1.100.
• A metric value of 1 works because the ISDN router is on the LAN.
• Private is selected only as a precautionary security measure in case RIP is activated.
Set Up a Static Route
To set up a static route:
1. Launch a web browser from a computer or wireless device that is connected to the
network.
2. T
ype http://www.routerlogin.net or http://www.routerlogin.com.
A login screen displays.
3. Enter the router user name and password.
The user name is admin.
The default password is password. The user name and
password are case-sensitive.
The BASIC Home screen displays.
4. Select ADV
ANCED > Advanced Setup > Static Routes.

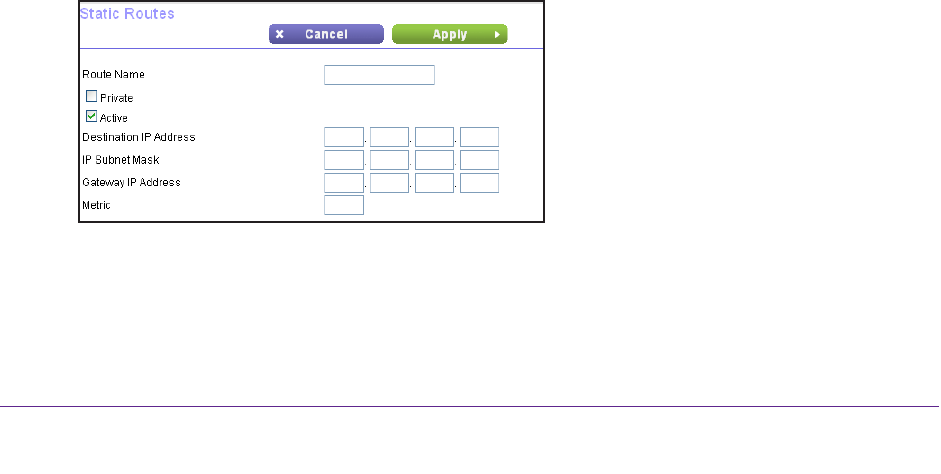

The Static Routes screen displays.
5. Click the Add button.
The screen adjusts.
6. In the Route Name field, type a name for this static route (for identification purposes only).
7. Select the Private check box if you want to limit access to the LAN only
.
If the Private check box is selected, the static route is not reported in RIP
.
