Neighbors Information
The LLDP Neighbors Information screen contains information received from neighboring device
LLDP advertisements.
To view LLDP neighbors information:
1. Click System > LLDP > Advanced > Neighbors Information. The LLDP Neighbors
Information screen displays:
The LLDP Neighbors Information screen contains the following fields:
• MSAP Entry – Displays the device’s Media Service Access Point (MSAP) entry number.
• Local Port – Displays the port number.
• Chassis ID SubType – Displays the chassis ID subtype. For example, MAC address.
• Chassis ID – Displays the chassis identification of the device transmitting the LLDP
frame.
• Port ID SubType – Displays the port ID subtype. For example, MAC address.
• Port ID – Displays the port identification of the port transmitting the LLDP frame.

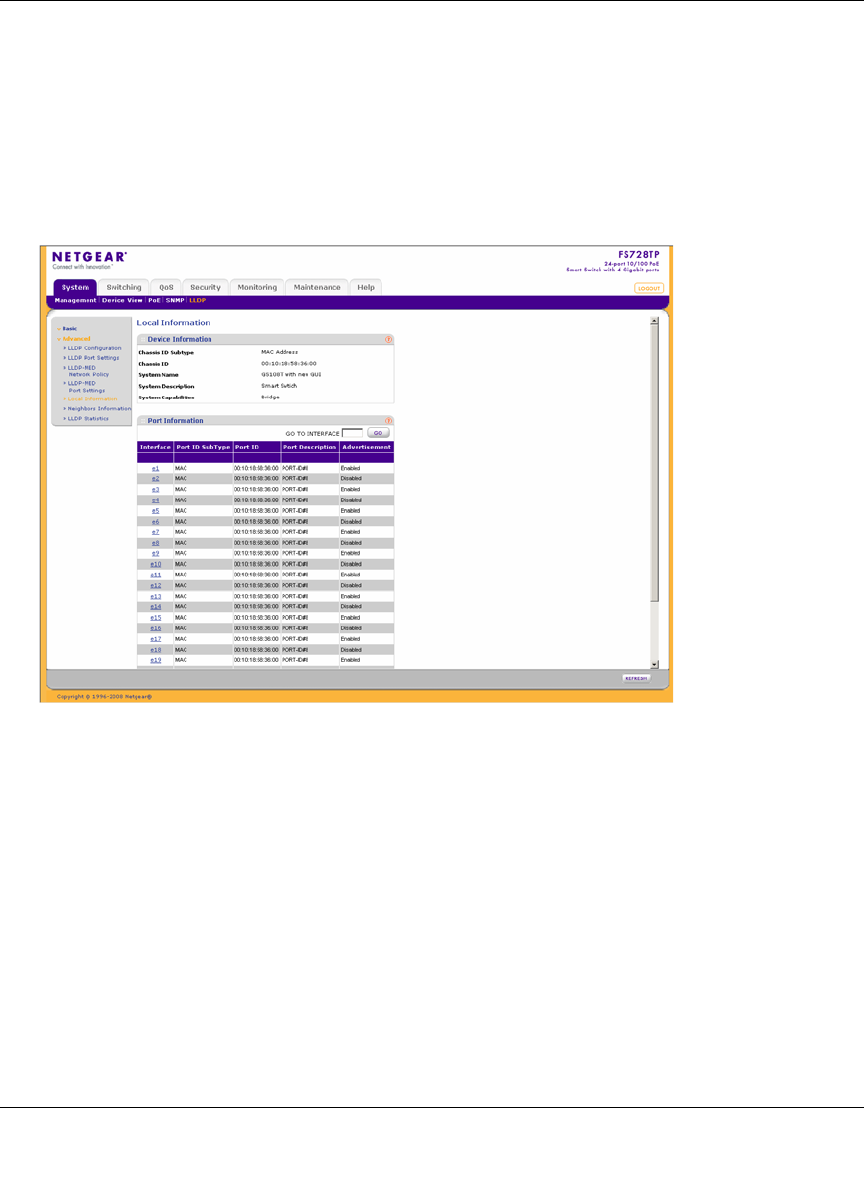

Figure 3-27
