The LLDP-MED Port Settings screen contains the following fields:
• Port – Select the port to configure.
• LLDP-MED status – Select the LLDP-MED status for the selected port. The possible
field values are:
– Enable – Enables LLDP-MED on the selected port.
– Disable – Disables LLDP-MED on the selected port.
• Notification – Select the notification status for the selected port. The possible field values
are:
– Enable – Enables notification on the selected port.
– Disable – Disables notification on the selected port.
• Network Policies – Click on the gold button to select the network policy numbers to apply
to the selected port.
2. Select the Port from the list in the provided field.
3. Select the LLDP-MED status of the selected port from the list in the provided field.

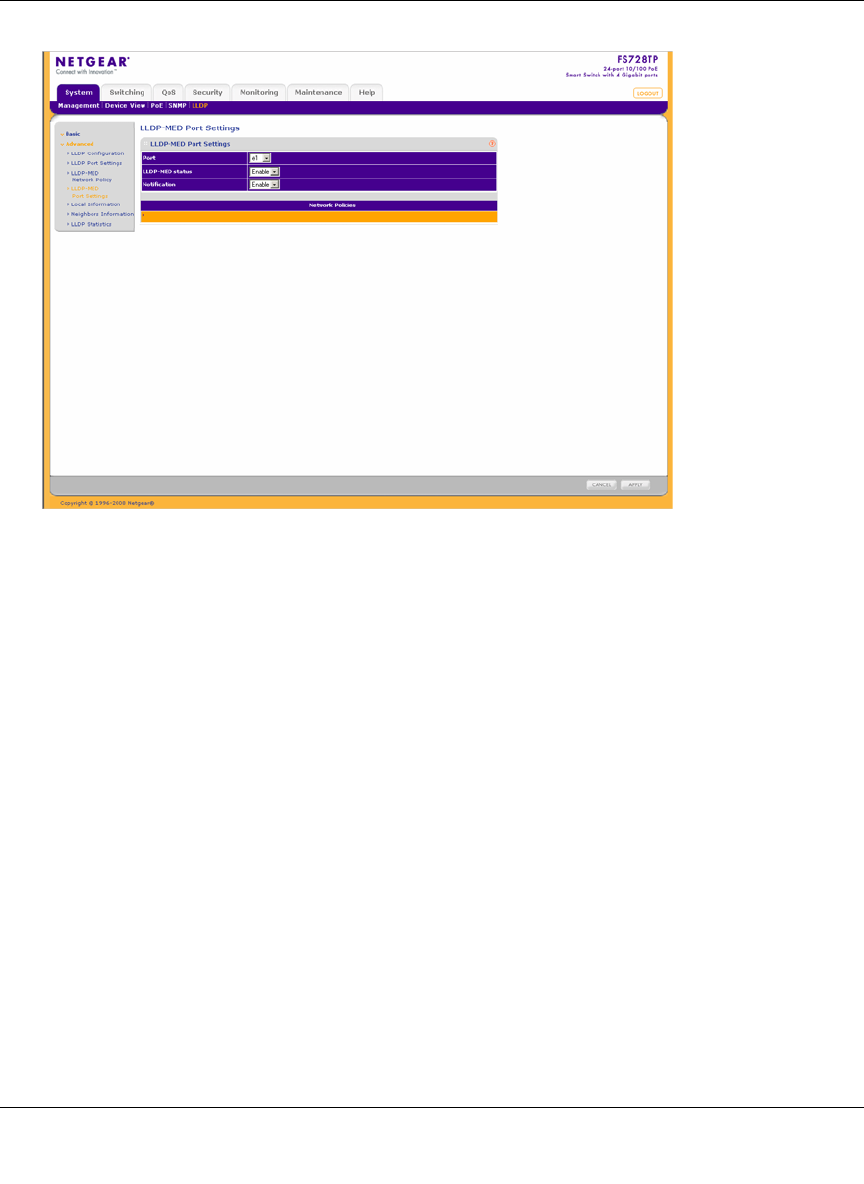

Figure 3-25
