Switch User Manual

FS728TP Smart Switch Software Administration Manual
Managing System Settings 3-45
v1.1, September 2009
The LLDP-MED Network Policy screen contains the following fields:
• Network Policy Number – Select the network policy number. The field range is 1 - 32.
• Application – Select the application for which the network policy is defined. The possible
field values are:
– Voice – Indicates the network policy is defined for a Voice application.
– Voice Signaling – Indicates the network policy is defined for a Voice Signaling
application.
– Guest Voice – Indicates the network policy is defined for a Guest Voice application.
– Guest Voice Signaling – Indicates the network policy is defined for a Guest Voice
Signaling application.
– Softphone Voice – Indicates the network policy is defined for a Softphone Voice
application.
– Video Conferencing – Indicates the network policy is defined for a Video
Conferencing application.

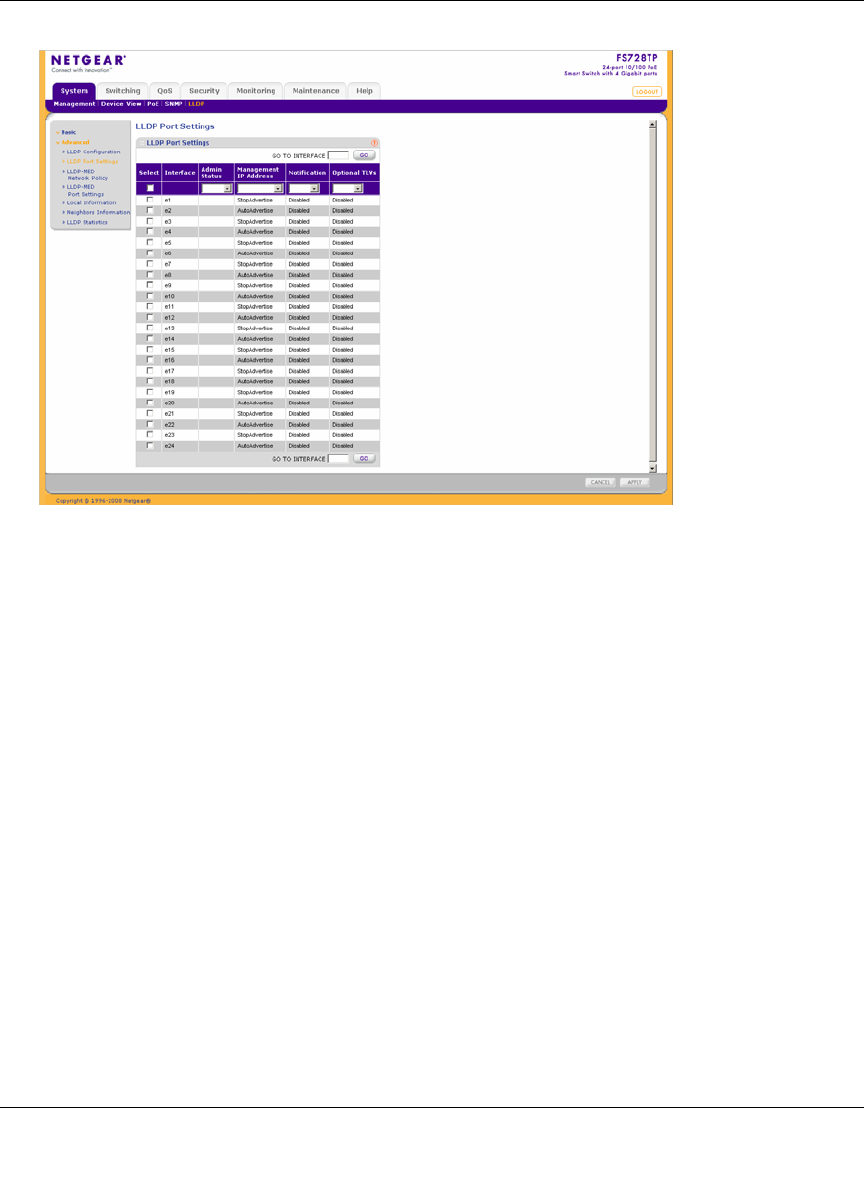

Figure 3-24
