The LLDP Port Settings screen contains the following fields:
• Interface – Displays the specific interface for which LLDP parameters are defined.
• Admin Status – Select the LLDP packet transmitting and receiving status of the interface.
The possible field values are:
– Tx Only – Enables transmitting LLDP packets only.
– Rx Only – Enables receiving LLDP packets only.
– Tx & Rx – Enables transmitting and receiving LLDP packets.
– Disable – Disables LLDP on the interface.
• Management IP Address – Select the management IP address that is advertised from the
interface. The possible field values are:
– StopAdvertise – Stops advertising the management IP address from the interface.
– AutoAdvertise – Advertises the device’s current IP address as the management IP
address.
• Notification – Select the topology change notification status on the interface.

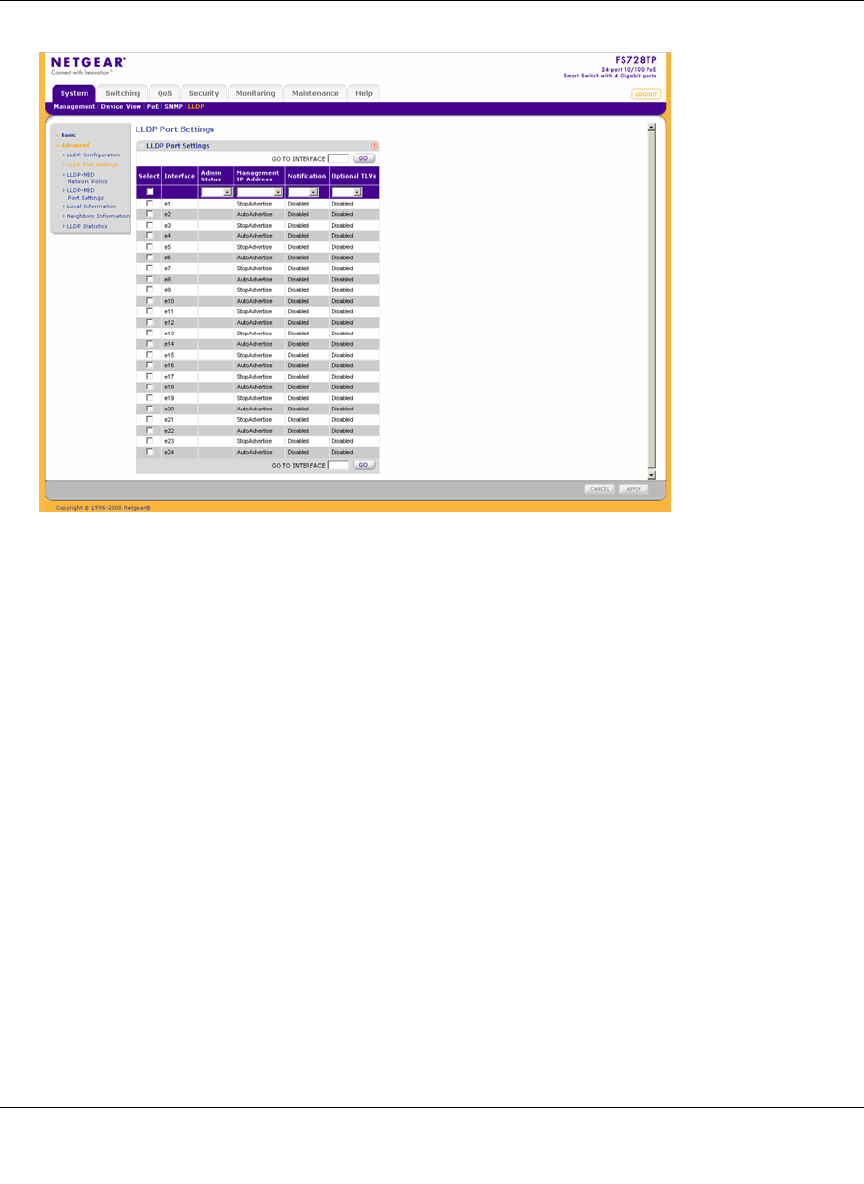

Figure 3-23
