Switch User Manual

FS728TP Smart Switch Software Administration Manual
Managing System Settings 3-39
v1.1, September 2009

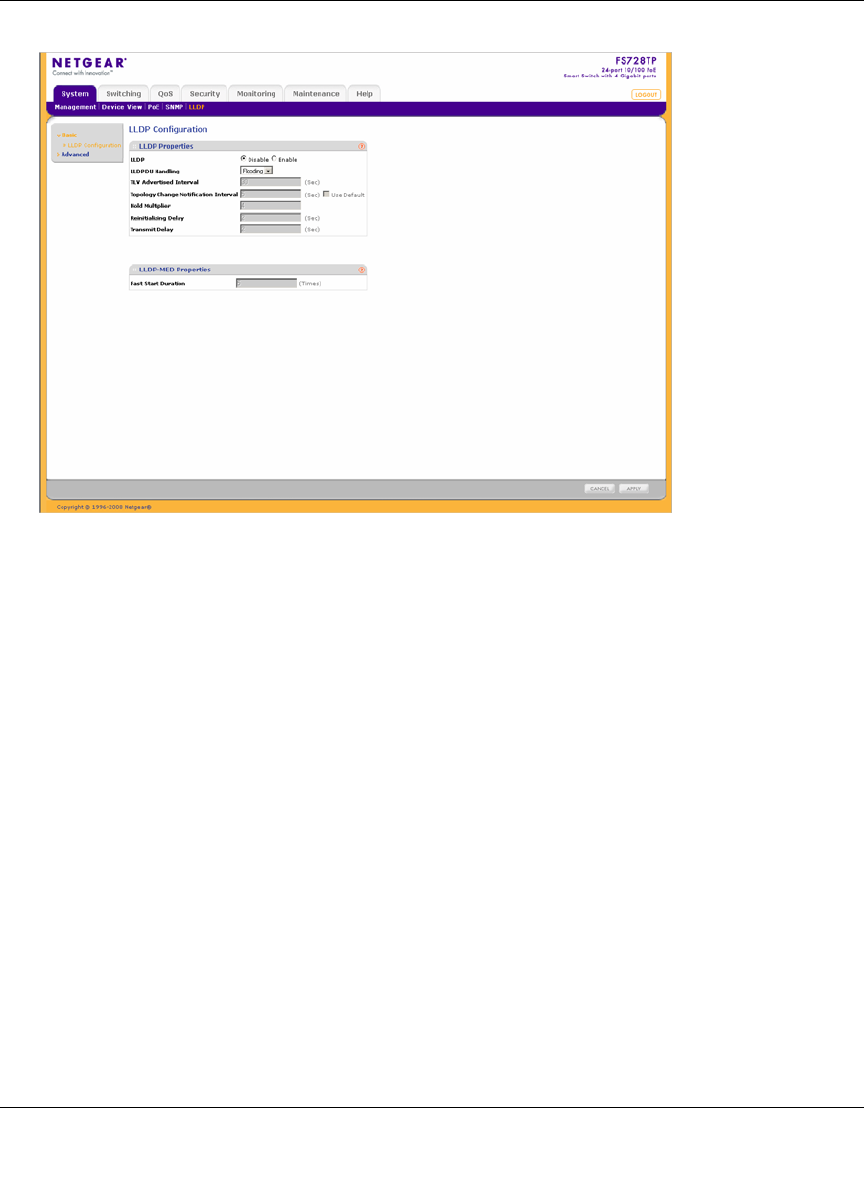

The Basic LLDP Configuration screen contains the following fields:
LLDP Properties
• LLDP – Select the LLDP global status on the device. The possible field values are:
– Disable – Disables LLDP on the device. This is the default value.
– Enable – Enables LLDP on the device.
• LLDPDU Handling – Select LLDPDU (LLDP Data Unit) packet handling when LLDP is
disabled. The possible field values are:
– Flooding – Indicates LLDPDU packets are flooded to all ports in the system.
– Filtering – Indicates LLDPDU packets are filtered. This is the default.
• TLV Advertised Interval – Enter the rate in seconds at which LLDP advertisement
updates are sent. The possible field range is 5 - 32768 seconds. The default value is 30
seconds.
Figure 3-21
