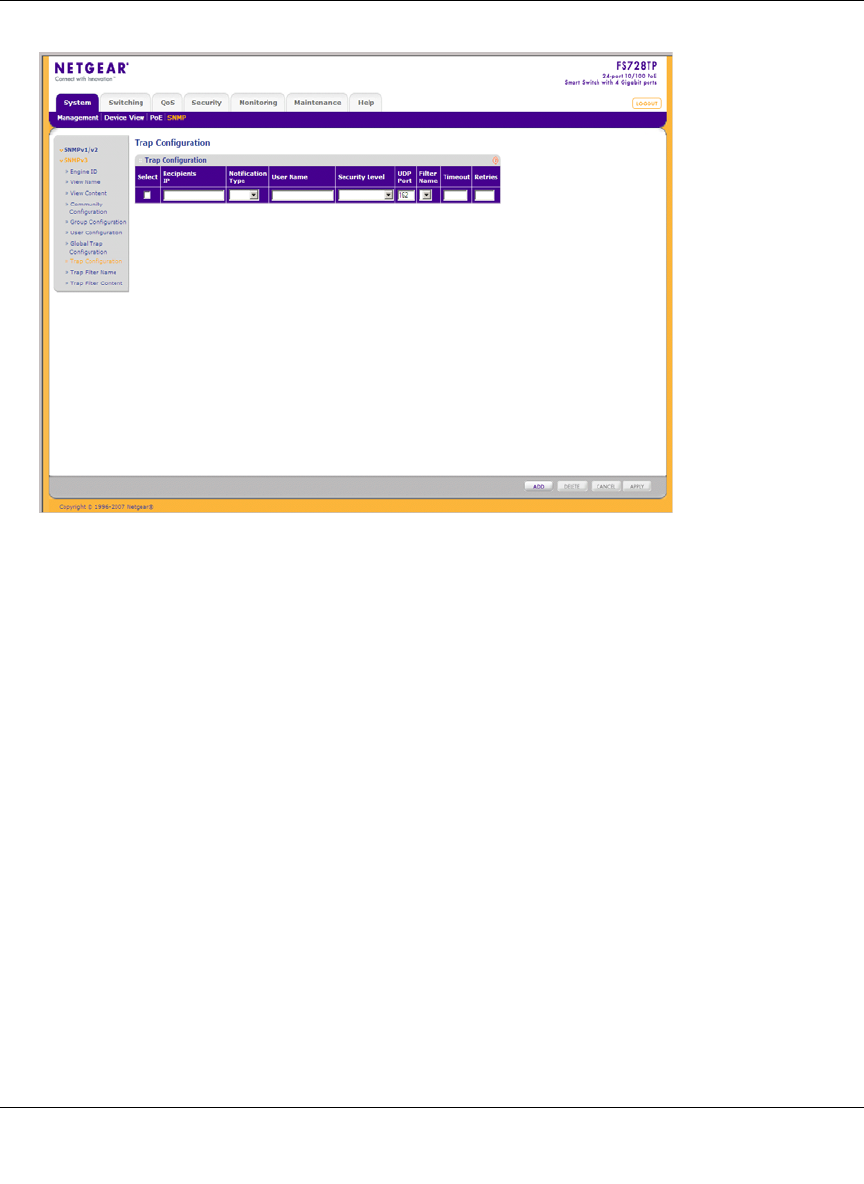

The SNMPv3 Trap Configuration screen contains the following fields:
• Recipients IP – Enter the IP address to which the traps are sent.
• Notification Type – Select the type of notification sent. The possible field values are:
– Traps – Indicates traps are sent.
– Informs – Indicates informs are sent.
• User Name – Enter the user name. The field range is up to 30 alphanumeric characters.
• Security Level – Select the security level attached to the group. Security levels apply to
SNMPv3 only. The possible field values are:
– No Authentication – Indicates neither the Authentication nor the Privacy security
levels are assigned to the group.
– Authentication – Authenticates SNMP messages and ensures that the SNMP
message’s origin is authenticated.
– Privacy – Encrypts SNMP messages.
• UDP Port – Enter the UDP port used to send notifications. The default is 162.
Figure 3-18
