FS728TP Smart Switch Software Administration Manual
3-18 Managing System Settings
v1.1, September 2009
• Providing Access Control Checks
To configure SNMPv1/v2 trap station management:

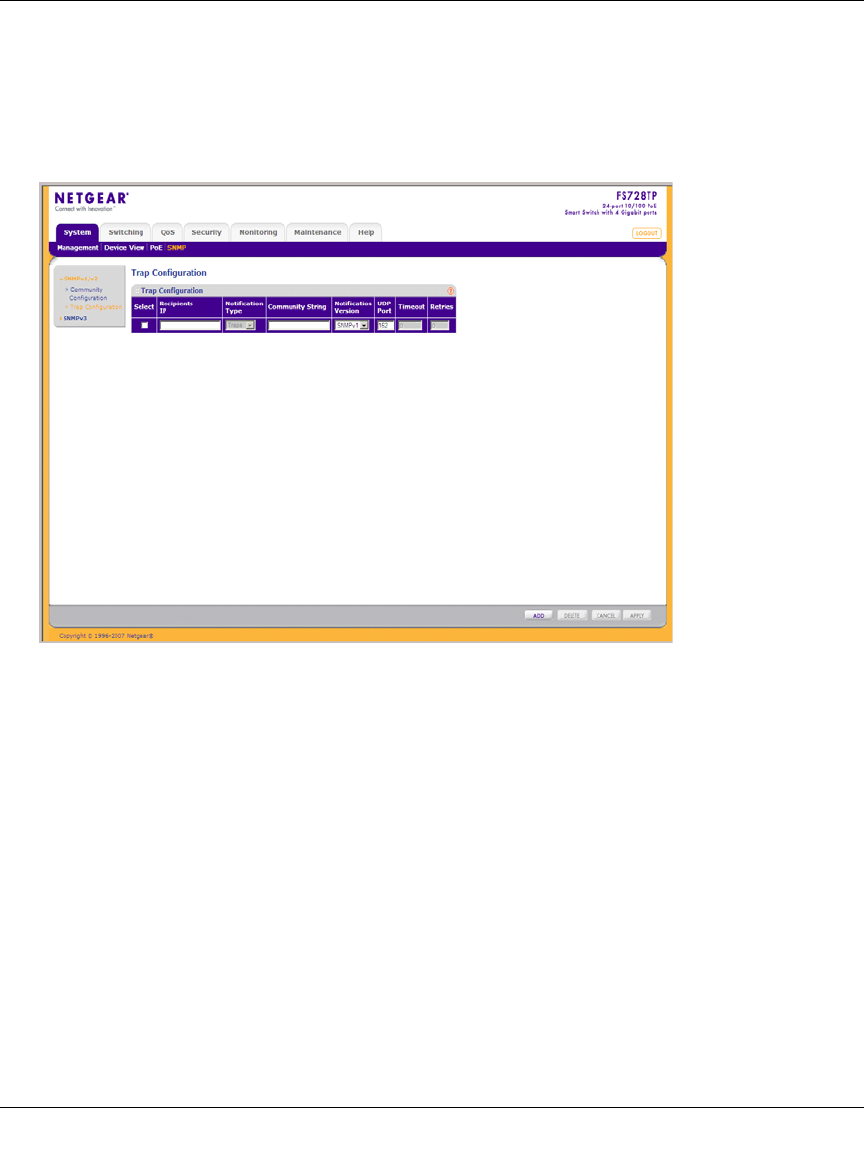

1. Click System > SNMP > SNMPv1/v2 > Trap Configuration. The SNMPv1/v2 Trap
Configuration screen displays:
The SNMPv1/v2 Trap Configuration screen contains the following fields:
• Recipients IP – Enter the IP address to which the traps are sent.
• Notification Type – (Configurable only if the Notification Version is SNMPv2.) Select
the type of notification sent. The possible field values are:
– Traps – Indicates Traps are sent.
– Informs – Informs are sent only when SNMPv2 is enabled.
• Community String – Enter the community string of the trap manager.
• Notification Version – Select the trap type. The possible field values are:
– SNMPv1 – Indicates SNMP Version 1 traps are sent.
– SNMPv2 – Indicates SNMP Version 2c traps are sent.
Figure 3-10
