Switch User Manual

FS728TP Smart Switch Software Administration Manual
2-12 Introduction to the Web Browser Interface
v1.1, September 2009
To display all ports :
1. Click PORTS in the interface selection row. The screen displays a table of all ports .

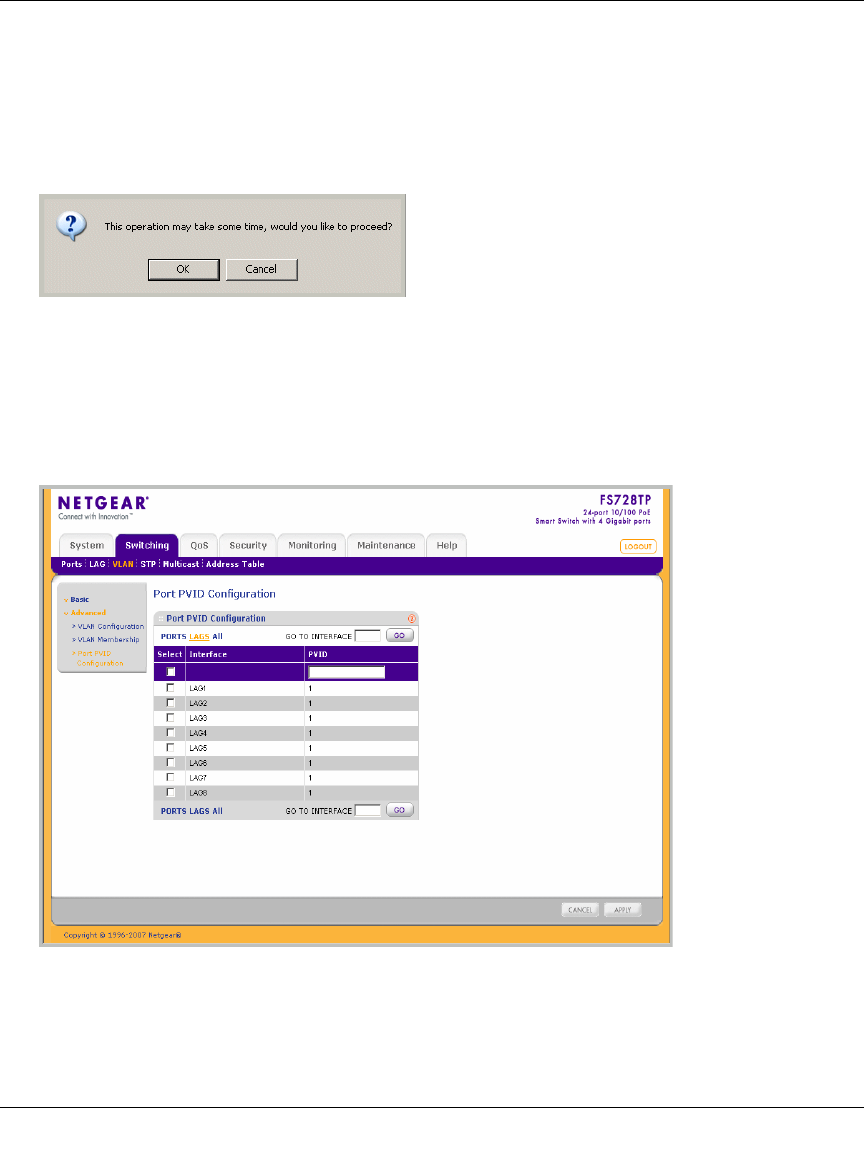

To display all interfaces :
1. Click All in the interface selection row. A confirmation window opens.
2. Click OK. The screen displays a table of all interfaces .
To display the LAG table:
1. Click LAGS in the interface selection row. The screen displays a table of all LAGs.
To select an interface:
1. Enter the number of the interface in the GO TO INTERFACE box.
Figure 2-15
Figure 2-16
