FS728TP Smart Switch Software Administration Manual
Introduction to the Web Browser Interface 2-11
v1.1, September 2009

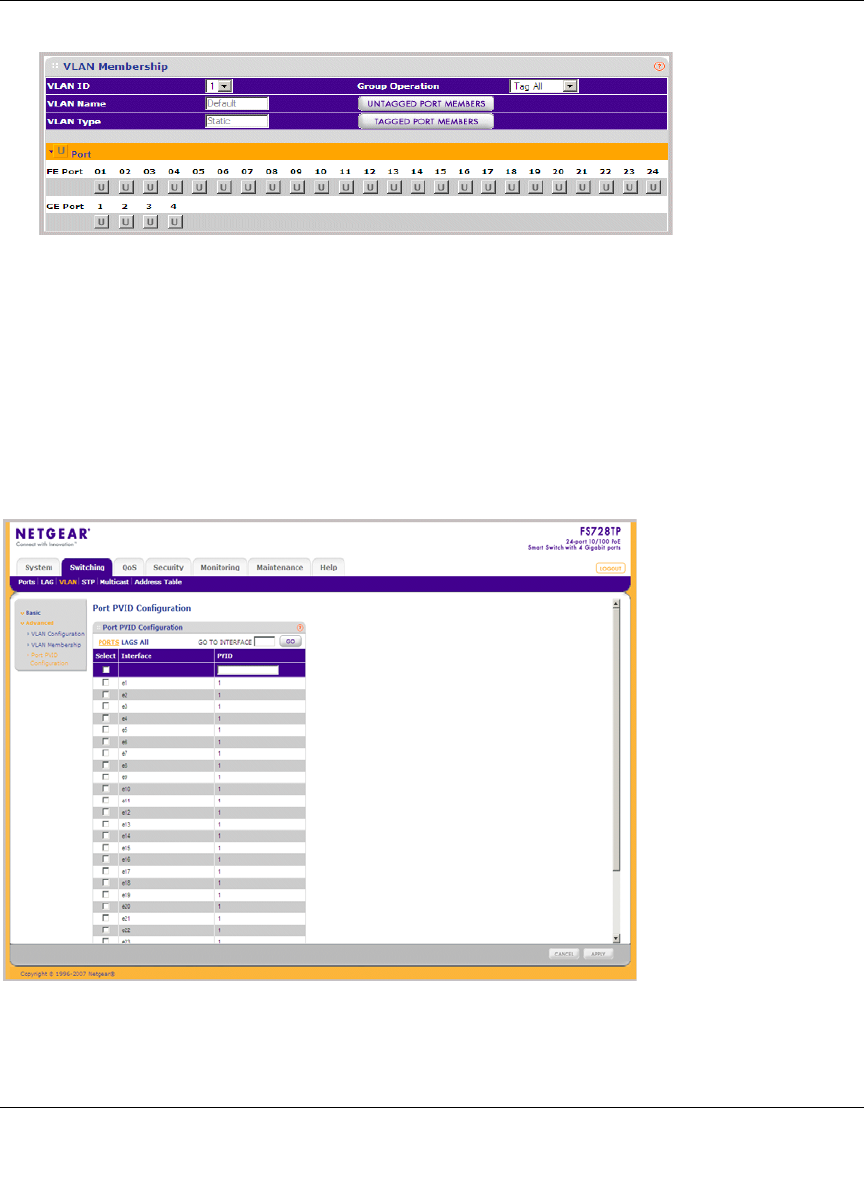

4. Click again on the quick box, and the quick box and all the port boxes appear blank, marking
the ports as neither tagged nor untagged.
5. You may click on individual port boxes to toggle their tagged/untagged status
Interface View and Selection
A port or LAG interface may be selected from a table by using the interface selection row, located
above the row of column headers. Clicking on PORTS or LAGS displays the ports or the LAGs:
Figure 2-13
Figure 2-14
