Switch User Manual

GS700TP Smart Switch Software Administration Manual
8-2 Maintenance
v1.1, September 2009

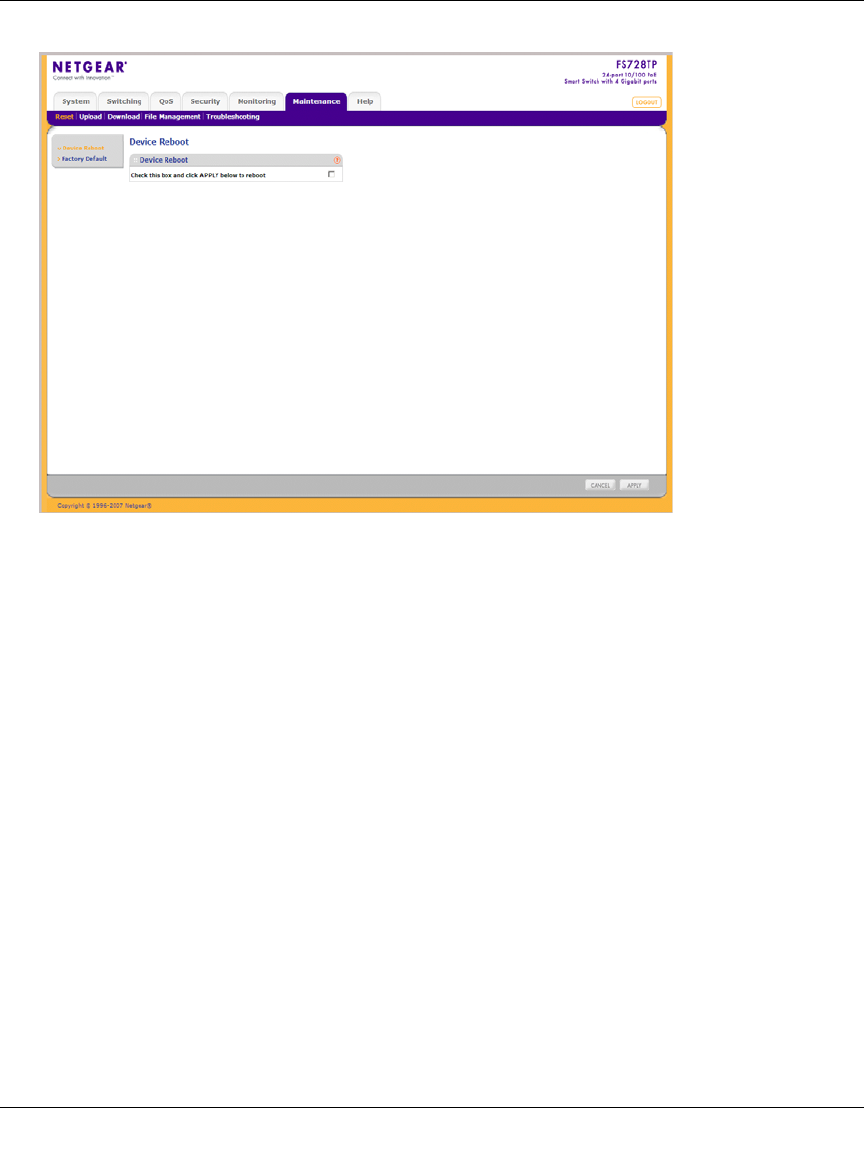

The Device Reboot screen contains the following field:
• Check this box and click Apply below to reboot – Select the confirmation box to
confirm changes.
2. To reboot the device, select the checkbox and click APPLY.
3. Check the confirmation box.
4. Click APPLY to reboot the device.
Factory Default
The Factory Default screen allows network managers to reset the device to the factory defaults
shipped with the switch. Restoring factory defaults results in erasing the configuration file.
Note: Selecting this option automatically reboots the device.
To reset the device to the factory defaults:
1. Click Maintenance > Reset > Factory Default. The Factory Default screen displays:
Figure 8-1
