The RMON Alarms screen contains the following fields:
• Alarm Entry – Displays the alarm entry.
• Counter Name – Select the MIB variable.
• Interface – Enter the port or LAG interface.
• Counter Value – Displays the selected MIB variable value.
• Sample Type – Select the sampling method for the selected variable and comparing the
value against the thresholds. The possible field values are:
– Absolute – Compares the values directly with the thresholds at the end of the sampling
interval.
– Delta – Subtracts the last sampled value from the current value. The difference in the
values is compared to the threshold.
• Rising Threshold – Enter the rising counter value that triggers the rising threshold alarm.
The rising threshold is presented on top of the graph bars. Each monitored variable is
designated a color.
• Rising Event – Enter the event number by which rising alarms are reported.

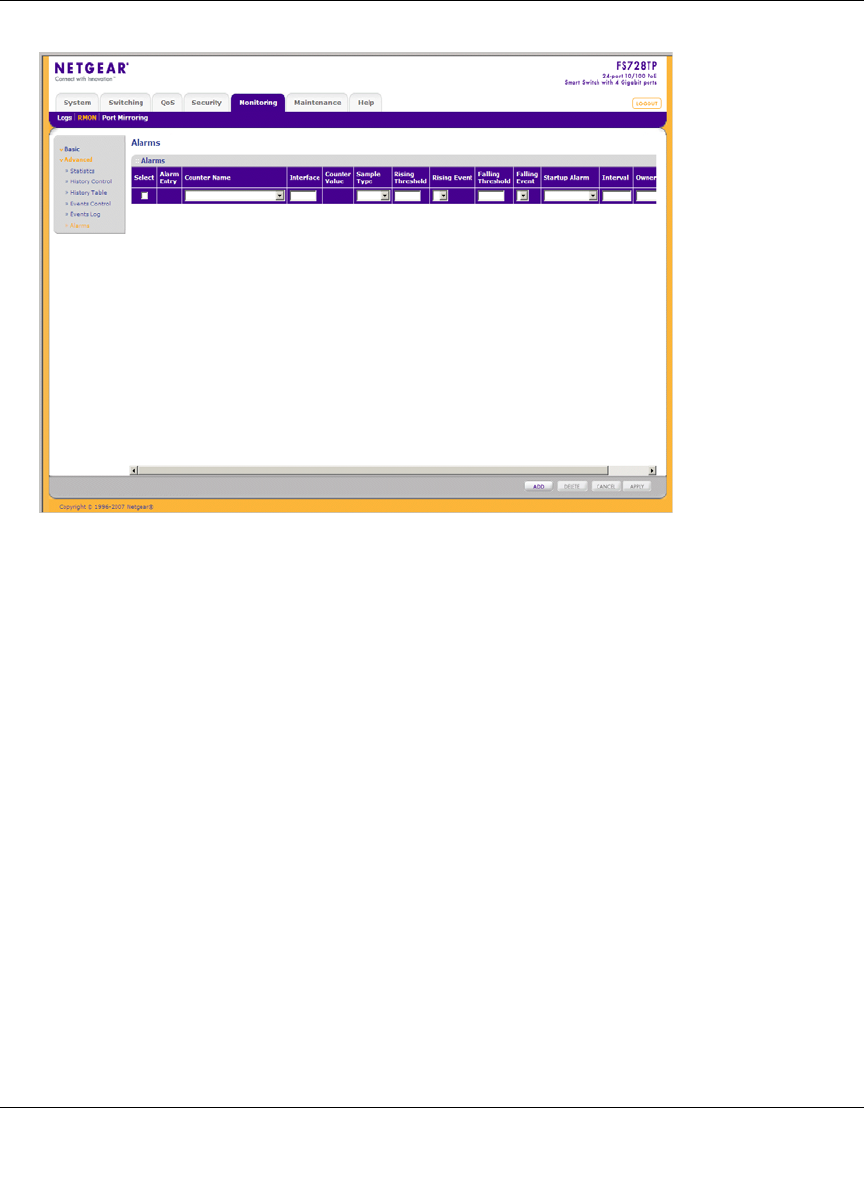

Figure 7-12
