Switch User Manual

FS728TP Smart Switch Software Administration Manual
Managing Security 6-31
v1.1, September 2009
The IPv6 Rules screen contains the following fields:
IPv6 Rules
• ACL Name – Select the ACL Name from the list.
IPv6 Rules Table
• Priority – Enter the rule priority. When the packet is matched to a rule, user groups are
either granted permission or denied device management access. The rule number is
essential to matching packets to rules, as packets are matched on a first-fit basis.
• Protocol ID – Enter the protocol in the rule to which the packet is matched.
• Source IP Address – Enter the source IP Address.
• Prefix Length – Enter the source IP Prefix Length. The Prefix field is applicable only
when the IPV6 Static IP address is defined as a Global IPv6 address. The range is 5 - 128.
• Destination IP Address – Enter the destination IP address.
• Prefix Length – Enter the destination IP Prefix Length. The Prefix field is applicable only
when the IPV6 Static IP address is defined as a Global IPv6 address. The range is 5 - 128.
• Source Port – Enter the source port that is matched to packets.

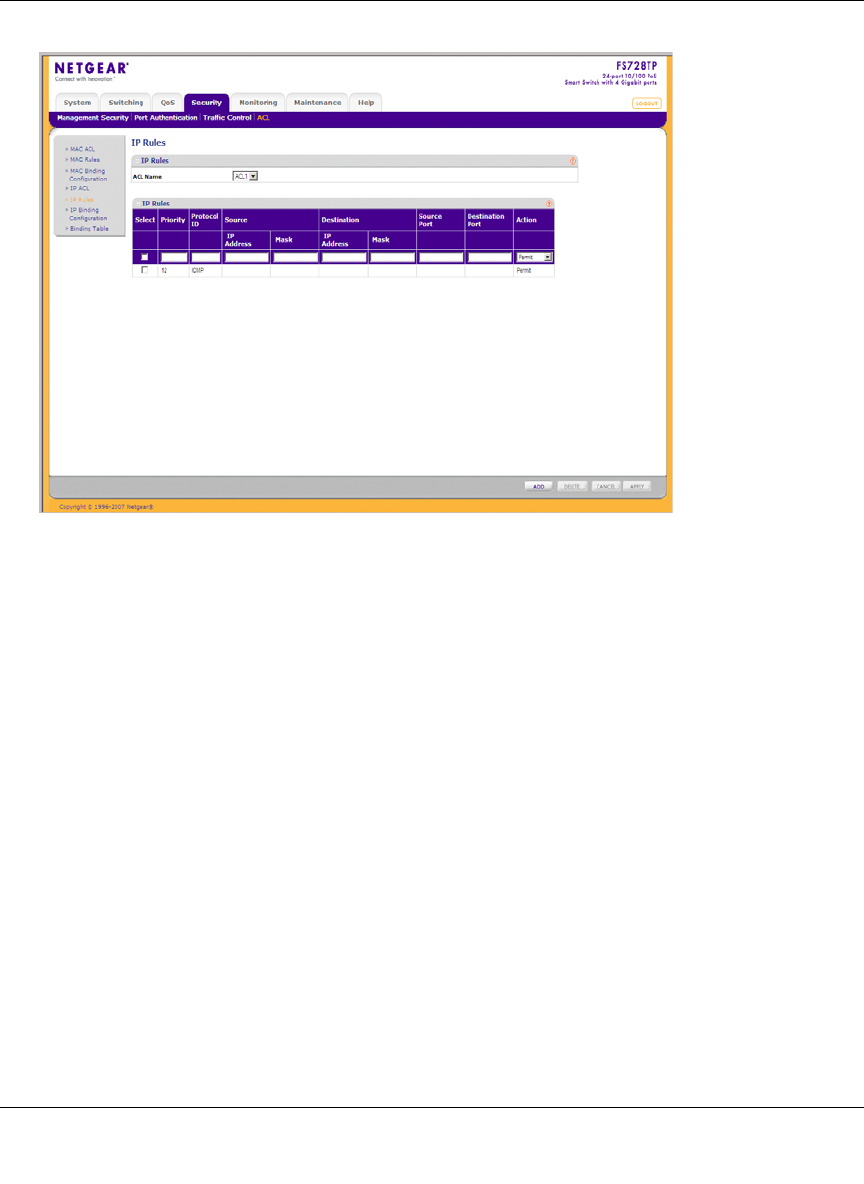

Figure 6-16
