IPv4 Rules
The IPv4 Rules screen allows an IP Rule to be defined within a configured ACL. Rules can be
added only if the ACL is not bound to an interface.
To define IPv4 Rules:

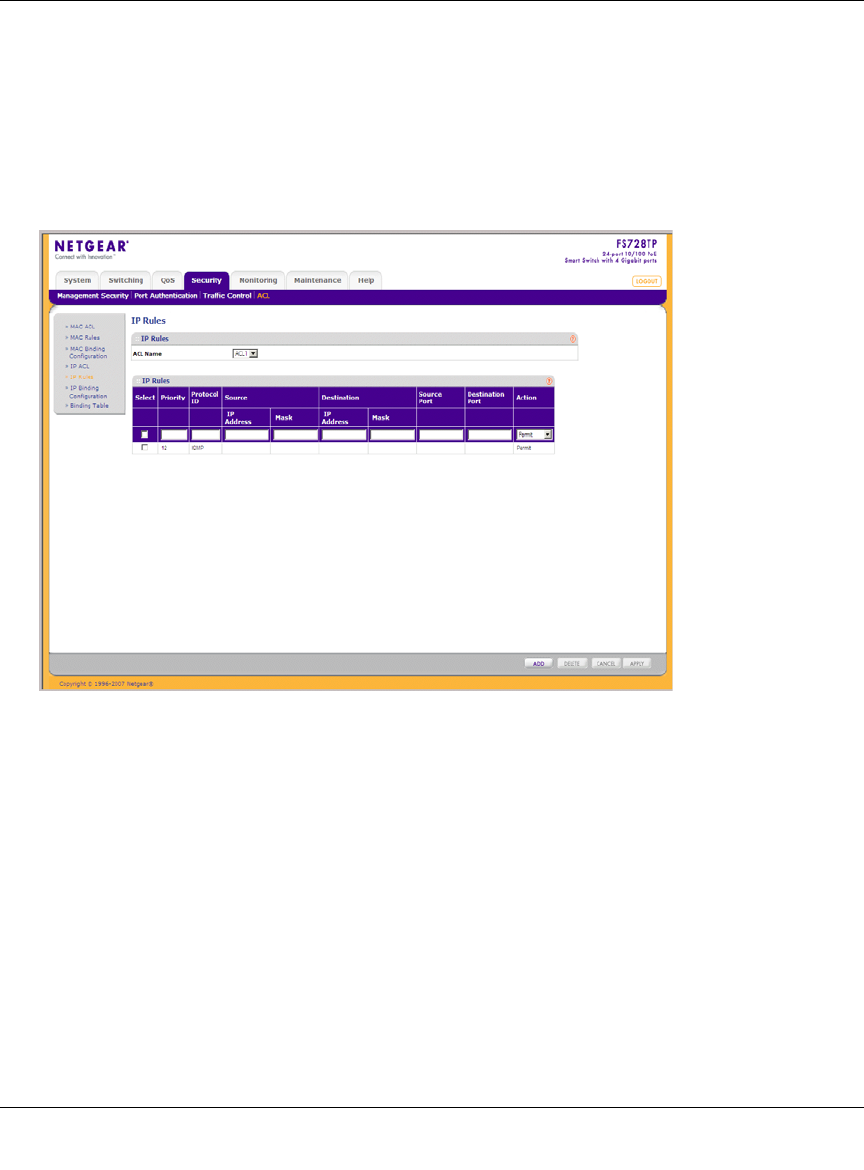

1. Click Security > ACL > IPv4 Rules. The IPv4 Rules screen displays:
The IPv4 Rules screen contains the following fields:
IPv4 Rules
• ACL Name – Select the ACL Name from the list
IPv4 Rules Table
• Priority – Enter the rule priority. When the packet is matched to a rule, user groups are
either granted permission or denied device management access. The rule number is
essential to matching packets to rules, as packets are matched on a first-fit basis.
• Protocol ID – Enter the protocol in the rule to which the packet is matched.
• Source IP Address – Enter the source IP Address.
Figure 6-13
