FS728TP Smart Switch Software Administration Manual
Managing Security 6-25
v1.1, September 2009
IPv4 ACL
The IPv4 ACL screen allows an IPv4 Based ACL to be defined.
To view or rename IPv4 Based ACLs:

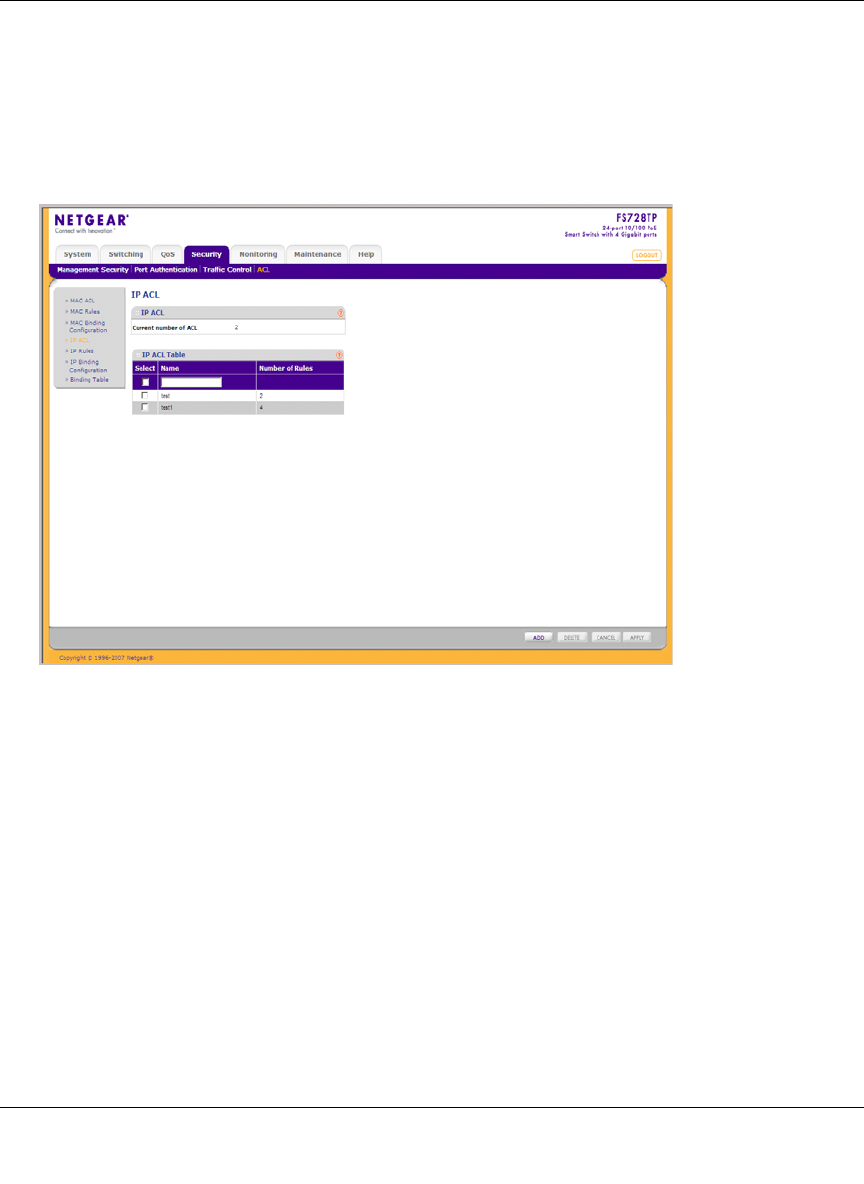

1. Click Security > ACL > IPv4 ACL. The IPv4 ACL screen displays:
The IPv4 ACL screen contains the following fields:
IPv4 ACL
• Current number of ACL – Displays the current number of user-defined ACLs.
IPv4 ACL Table
• Name – Enter the user-defined IP based ACL name.
• Number of Rules – Displays the current number of rules in the ACL.
Figure 6-12
