The MAC Rules screen contains the following fields:
MAC Rules
• ACL Name – Select the ACL Name from the list.
MAC Rules Table
• Priority – Enter the rule priority. When the packet is matched to a rule, user groups are
either granted permission or denied device management access. The rule number is
essential to matching packets to rules, as packets are matched on a first-fit basis.
• Source MAC Address – Enter the source MAC Address.
• Source Mask – Enter the mask of the new source MAC address.
• Destination MAC Address – Enter the destination MAC address.
• Destination Mask – Enter the mask of the new destination MAC address.
• VLAN ID – Enter the VLAN ID to which the MAC address is attached in the MAC Rules
database.
• Action – Select the action applied to packets with MAC addresses that have been filtered.
The possible field value are:

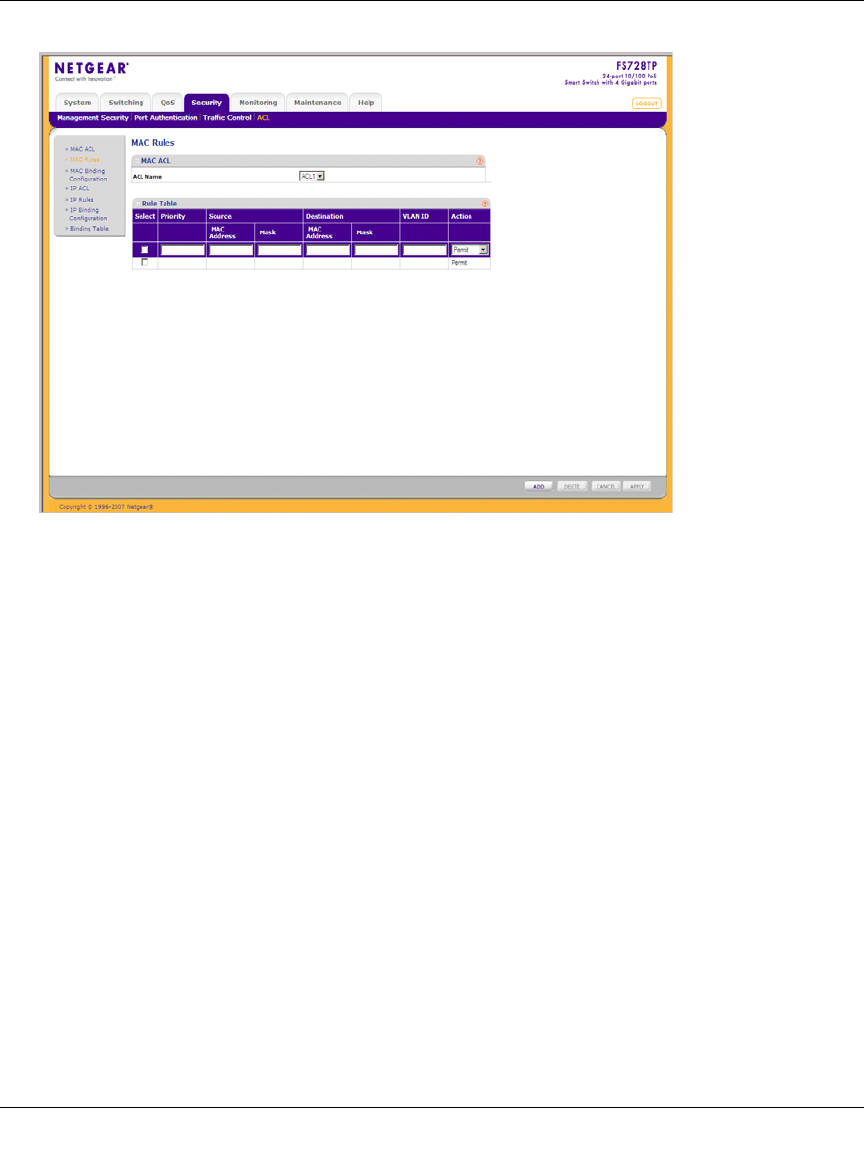

Figure 6-10
