The Bandwidth screen allows the network manager to define Ingress Rate Limit and Egress
Shaping Rates.
To define bandwidth settings:

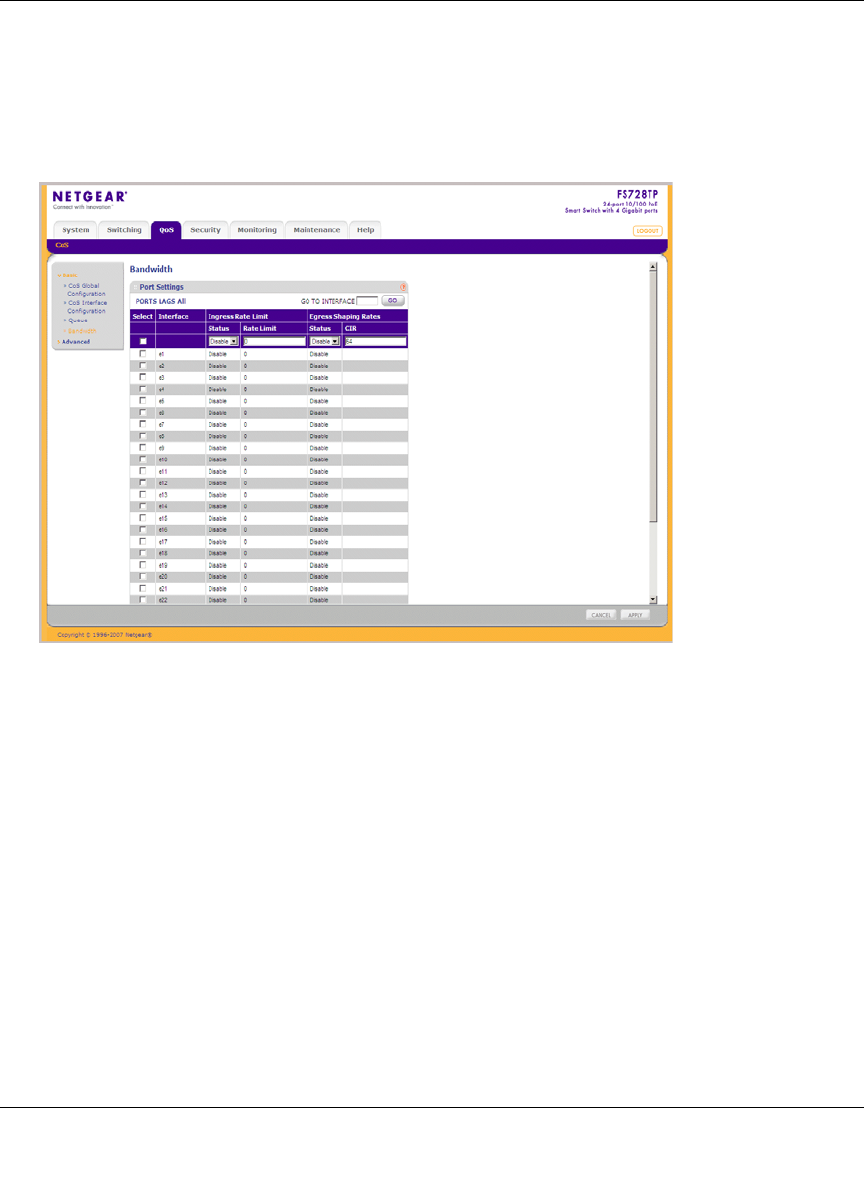

1. Click QoS > CoS > Basic > Bandwidth. The Bandwidth screen displays:
The Bandwidth screen contains the following fields:
• Interface – Displays the ports for which the bandwidth settings are displayed.
• Ingress Rate Limit Status – Select whether rate limiting is defined on the interface. The
possible field values are:
– Enable – Enables ingress rate limiting on the interface.
– Disable – Disables ingress rate limiting on the interface.
• Ingress Rate Limit – Enter the rate limit in kilobits per second. The possible field range is
0 to the maximum port speed. GE (Gigabit Ethernet) ports have a maximum speed of
1000000 kilobits per second. The field default value is 0.
• Egress Shaping Rates Status – Select whether egress shaping is defined on the interface.
The possible field values are:
Figure 5-4
