Switch User Manual

FS728TP Smart Switch Software Administration Manual
5-6 Configuring QoS
v1.1, September 2009

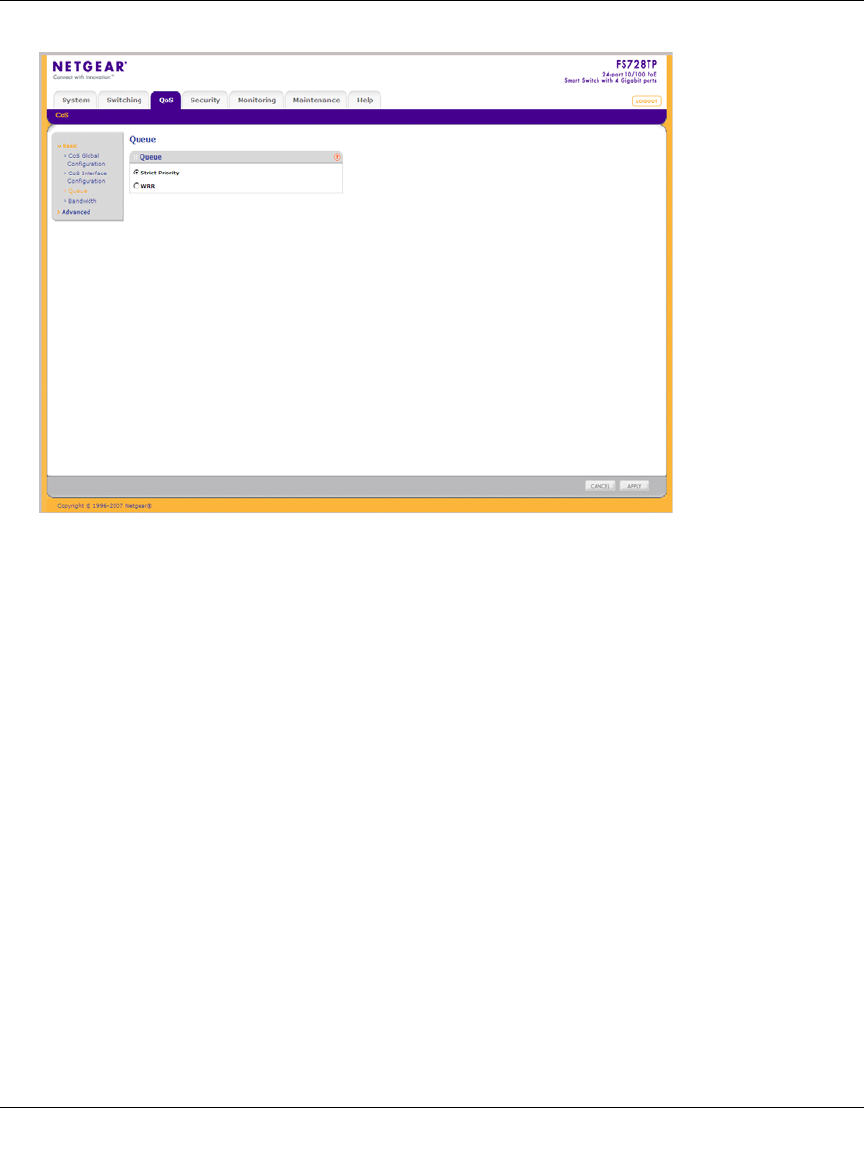

The Queue screen contains the following fields:
• Strict Priority – Select to specify traffic scheduling based strictly on the queue priority.
• WRR – Select to assign WRR weights to queues. The queue weights are preconfigured
and are set to 1, 2, 4 and 8.
2. Select either Strict Priority or WRR to specify the traffic scheduling method.
3. Click APPLY to update the device.
Bandwidth
After packets are assigned to a queue, a scheduling scheme can be assigned to an interface, using
either:
• Committed Burst Size – Indicates the maximum number of data bits transmitted within a
specific time interval.
• Committed Information Rate – Indicates the rate that data is transmitted. The rate is
averaged over a minimum time increment.
Figure 5-3
