To query the Basic Address Table:

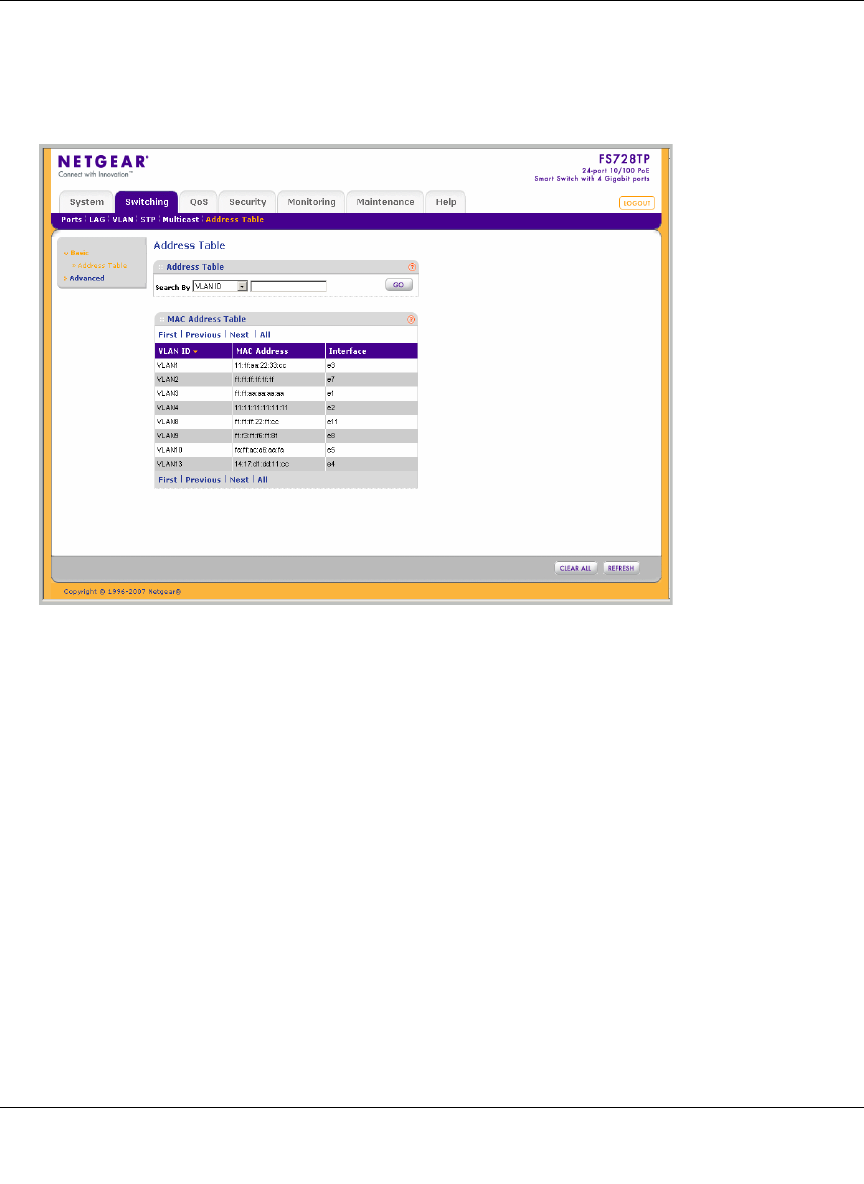

1. Click Switching > Address Table > Basic > Address Table. The Basic Address Table screen
displays:
The Basic Address Table screen contains the following fields:
• Search By – Display the MAC Address list according to selected category and query field.
The possible field values are:
– VLAN ID – Display the MAC Address table entries that relate to the specific VLAN
ID.
– MAC Address – Display the MAC Address table entries that relate to MAC Address.
– Interface – Display the MAC Address table entries that relate to the specific interface.
• VLAN ID – Displays the VLAN ID number to which the entry refers.
• MAC Address – Displays the MAC address to which the entry refers.
• Interface – Displays the interface to which the entry refers.
2. Select the Search By key from the list in the provided field.
Figure 4-28
