FS728TP Smart Switch Software Administration Manual
Configuring Switching Settings 4-19
v1.1, September 2009
To remove a VLAN:
Note: Prior to deleting a VLAN, ensure all multicast group configuration entries associated with
the VLAN are deleted. Refer to “Multicast Group Configuration” for deleting multicast
group entries.
1. Click Switching > VLAN > Advanced > VLAN Configuration. The Advanced VLAN
Configuration screen displays.
2. Select the VLAN entry.
3. Click DELETE to remove the entry.
VLAN Membership
The VLAN Membership screen contains a table that maps ports to VLANs. Ports are assigned
VLAN membership by toggling through the Port Control settings.
To define VLAN group membership:

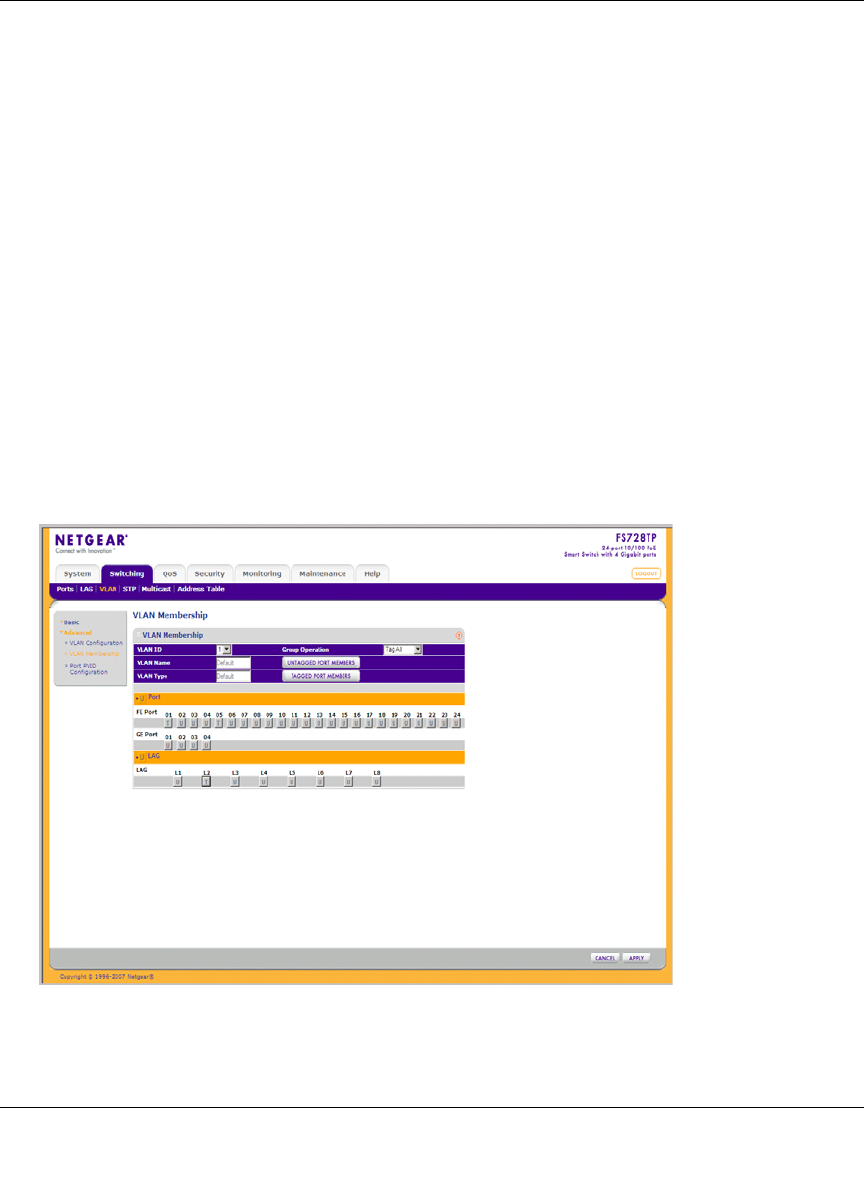

1. Click Switching > VLAN > Advanced > VLAN Membership. The VLAN Membership
screen displays:
Figure 4-12
