FS728TP Smart Switch Software Administration Manual
4-16 Configuring Switching Settings
v1.1, September 2009
The Basic VLAN Configuration screen contains the following fields:
• VLAN ID – Enter the VLAN ID. The field range is 2-4093.
• VLAN Name – Enter the user-defined VLAN name.
• Type – Displays the VLAN type. The possible field values are:
– Static – Indicates the VLAN is user-defined.
– Default – Indicates the default VLAN ID is 1. It cannot be modified by the user.
2. Select the VLAN entry.
3. Enter the VLAN ID and VLAN Name in the provided fields in the first row.
4. Click APPLY to update the device.
To add a new VLAN:
1. Click Switching > VLAN > Basic > VLAN Configuration. The Basic VLAN Configuration
screen displays.
2. Enter the VLAN ID and VLAN Name in the provided fields in the first row.
3. Click ADD to update the device.

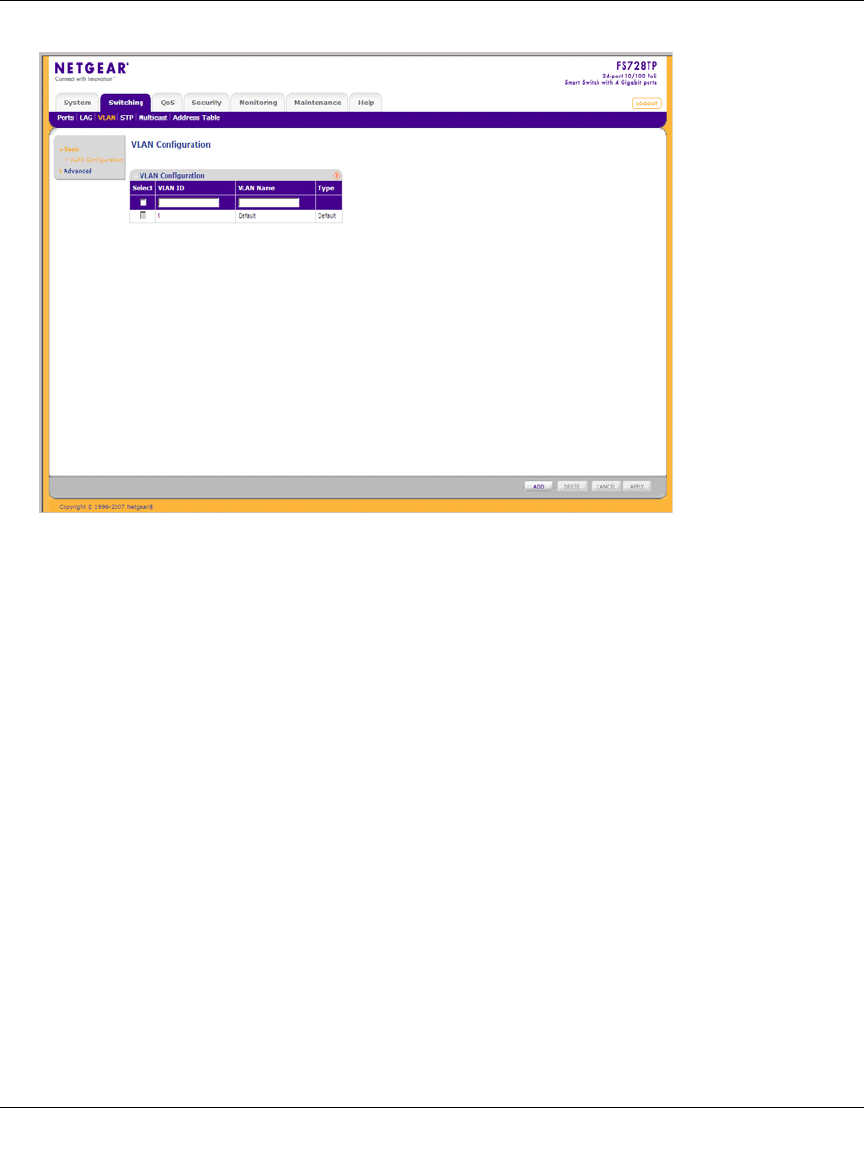

Figure 4-10
