The LACP Port Configuration screen contains the following fields:
• Interface – Displays the interface number to which timeout and priority values are
assigned.
• LACP Priority – Enter the LACP port priority value. The field range is 1-65535.
• Timeout – Select the administrative LACP timeout. The possible field values are:
– Long – Indicates a long timeout value (90 seconds).
– Short – Indicates a short timeout value (3 seconds). This is the default.
2. Select the interface.
3. Enter the LACP Priority and select the Timeout in the provided fields in the first row.
4. Click APPLY to update the device.

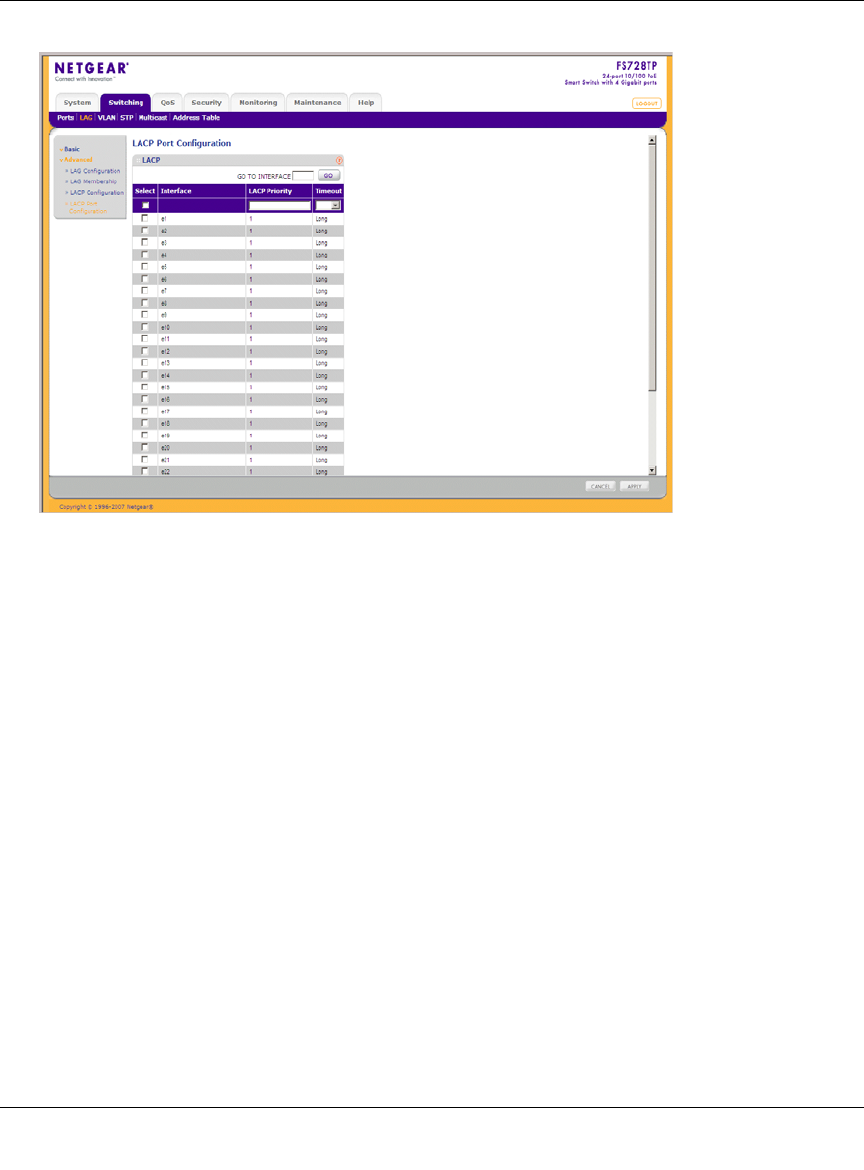

Figure 4-9
