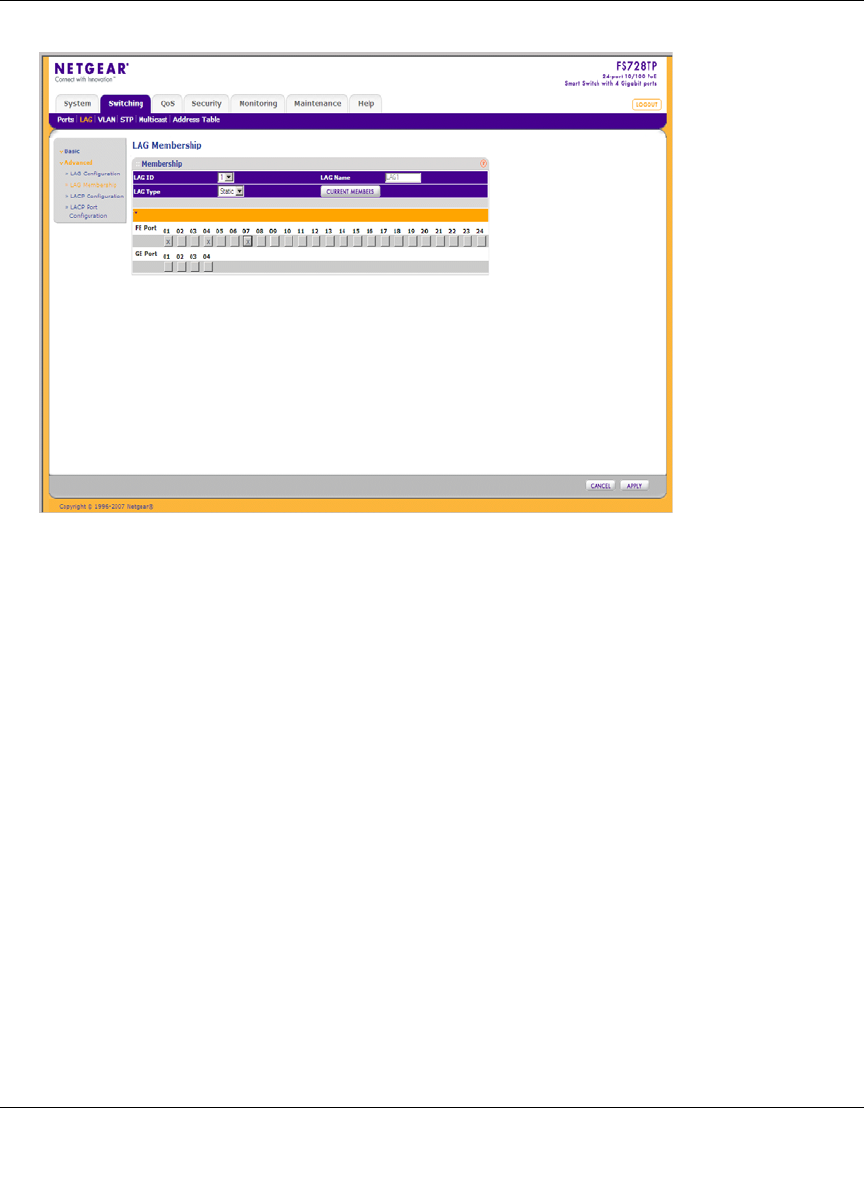

The Advanced LAG Membership screen contains the following fields:
• LAG ID – Select the LAG ID.
• LAG Name – Displays the user-defined LAG name.
• LAG Type – Select the LAG type. The possible field values are:
– Static – Indicates the LAG is configured manually.
– LACP – Indicates the LAG is configured automatically.
2. Select the LAG ID and LAG Type.
3. Click on the gold button. The port panel displays.
4. Select the ports to be members of the LAG.
5. Click APPLY to update the device.
6. Click CURRENT MEMBERS. The Current Members window opens and displays the
member ports included in the LAG:
Figure 4-6
