FS728TP Smart Switch Software Administration Manual
Configuring Switching Settings 4-9
v1.1, September 2009

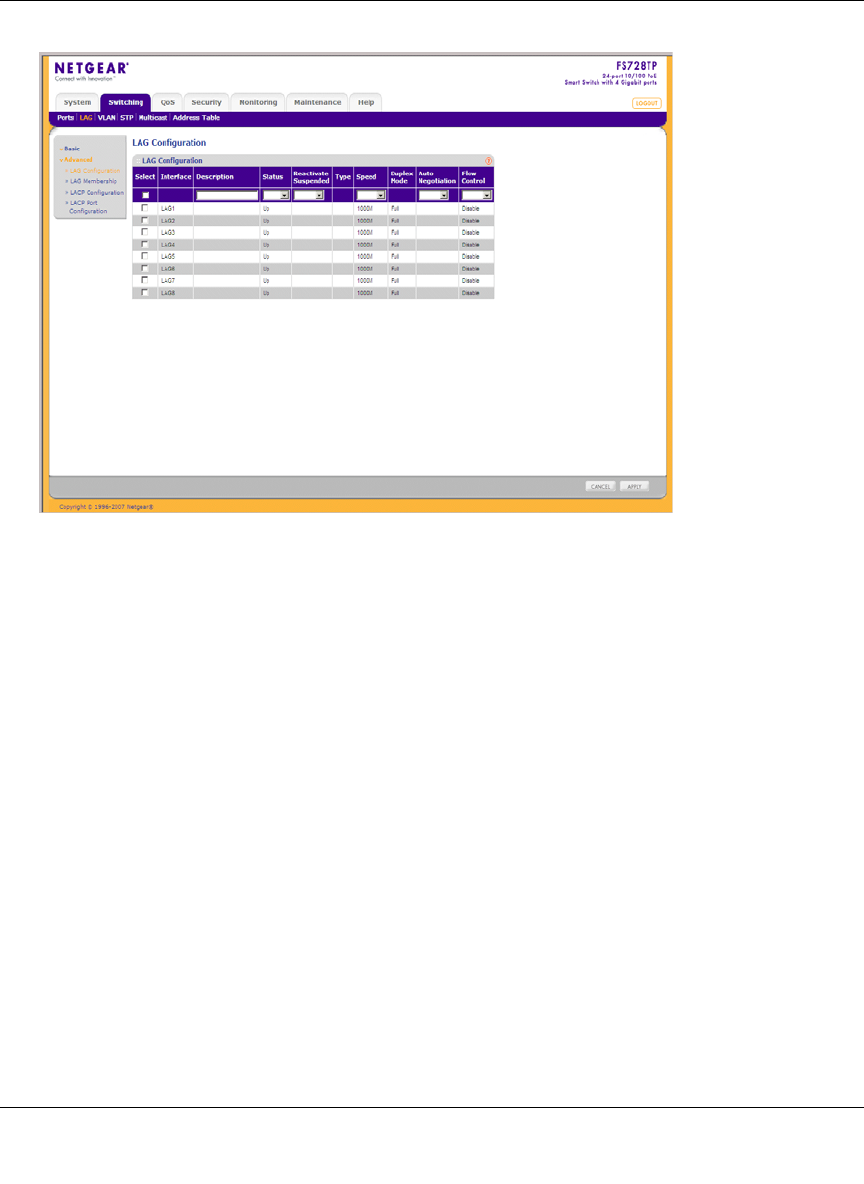

The Advanced LAG Configuration screen contains the following fields:
• Interface – Displays the LAG number.
• Description – Enter a user-defined LAG description.
• Status – Select the current link operation. The possible field values are:
– Up – Indicates the LAG is currently linked and forwarding traffic.
– Down – Indicates the LAG is currently not linked.
• Reactivate Suspended – Select the action to apply to a suspended LAG. The possible
field values are:
– Enable – Reactivates the suspended LAG.
– Disable – Does not reactivate the suspended LAG.
• Type – Displays the LAG Type. The possible field values are:
– Static – Indicates the LAG is configured manually.
– LACP – Indicates the LAG is configured automatically.
Figure 4-5
