WFS709TP ProSafe Smart Wireless Switch Software Administration Manual
Deploying a Basic WFS709TP System 2-11
v1.0, June 2007

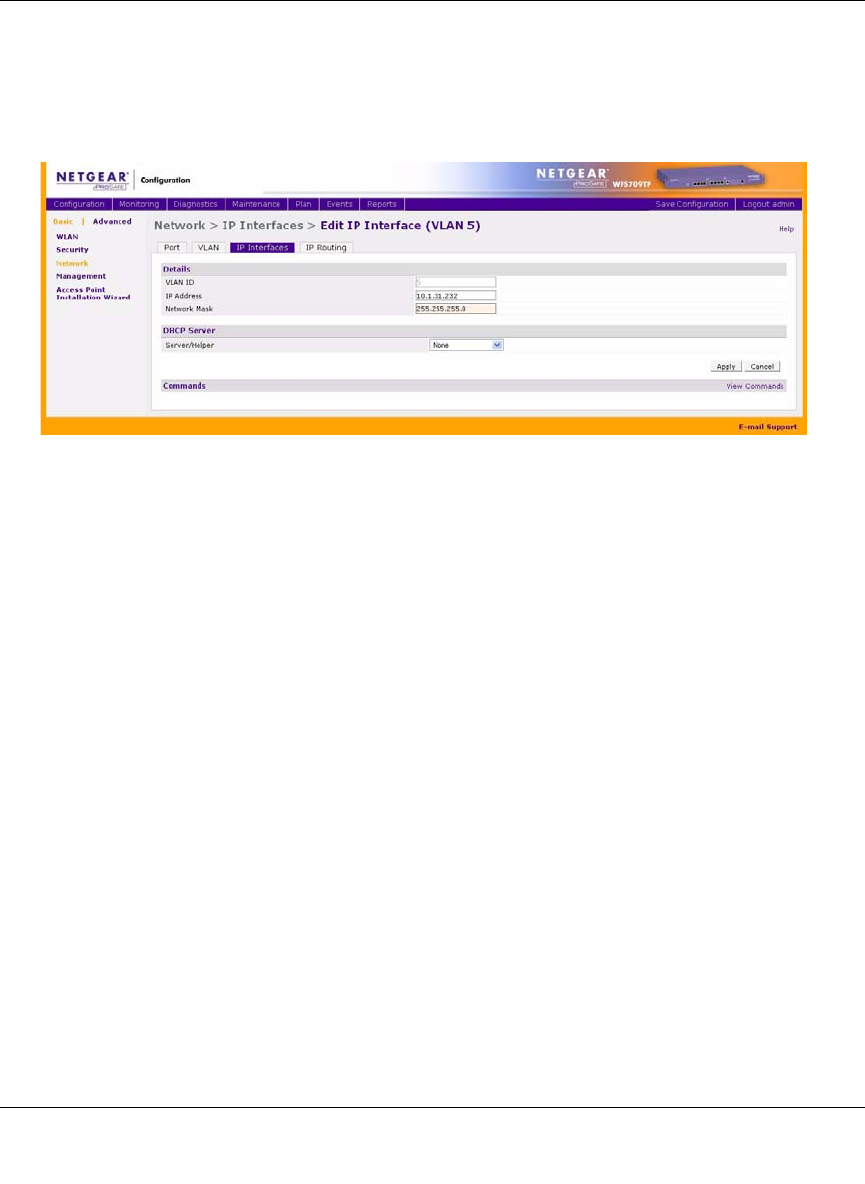

4. Navigate to the Configuration > Basic > Network > IP Interfaces page (Figure 2-8). Click Edit
for the VLAN you just added. Enter the IP address and network mask of the VLAN interface.
If required, you can also configure the address of the DHCP server for the VLAN by clicking
Add.
5. Click Apply to apply and save this configuration.
Configure the Trunk Port
The following procedure configures a Gigabit Ethernet port as a trunk port.
1. Navigate to the Configuration > Basic > Network > Port page (Figure 2-8).
2. To add a port to the VLAN, click the port in the Port Selection section.
3. For Port Mode, select Trunk.
4. For Native VLAN, select VLAN 5 from the scrolling list, then click the
← arrow.
Figure 2-8
