3G Broadband Wireless Router MBR624GU User Manual
Advanced Configuration 5-13
v1.1, March 2009

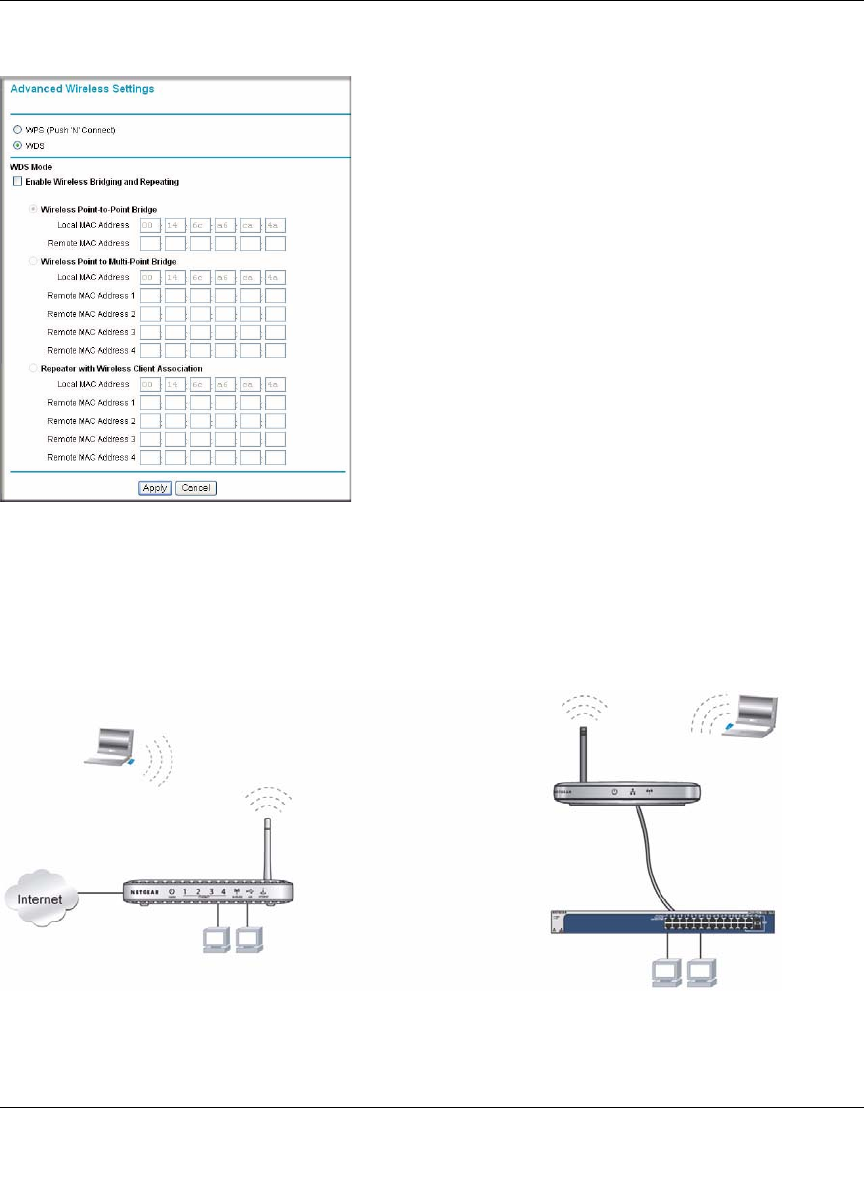

The following screen displays:
Point-to-Point Bridge Configuration
In Point-to-Point Bridge mode, the router communicates as an access point with another bridge-
mode wireless station. The following figure shows an example of Point-to-Point Bridge mode.
Figure 5-7
Figure 5-8
Both APs (access points) are in
Point-to-Point Bridge mode.
LAN Segment 1
LAN Segment 2
192.168.0.1
AP 1 (MBR624GU Router)
AP 2
Switch or hub
PC’s
PC’s
wireless PC
associated with AP 1
wireless PC
associated with AP 2
