3G Broadband Wireless Router MBR624GU User Manual
Installing Your Router 1-3
v1.1, March 2009

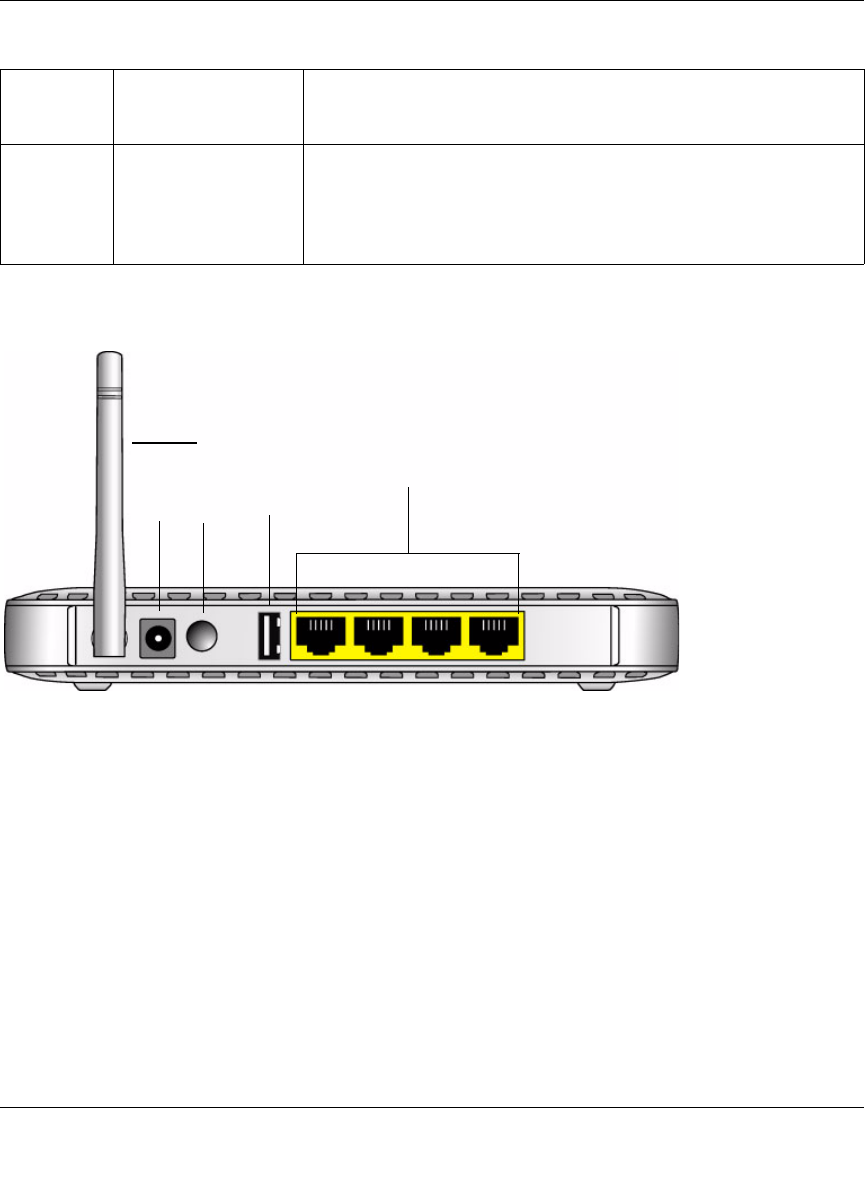

Back Panel
The router ports are color-coded to distinguish your Internet port from the other four ports that
connect to the wired computer(s) on your LAN. The rear panel contains the following elements:
1. Wireless antenna
2. AC power adapter input
3. Power switch
4. USB port for connecting a wireless USB modem (sold separately).
5. Four local Ethernet RJ-45 LAN ports for connecting the router to the local computers
4. USB
Solid green
Blinking green
Off
The wireless USB modem is attached to the USB port.
Data is being transmitted or received.
No link is detected on this port, or the USB modem is powered off.
5. Internet
Solid green
Blinking green
Red
Off
The router is connected to the Internet.
The router is connected to the Internet and traffic is passing through
the device.
No Internet connection.
The router is powered off.
Figure 1-2
Table 1-1. LED Descriptions (continued)
1
4
5
3
2
4
