User Manual

Configure System Information
66
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2
The login window opens.
4. Enter the switch’s password in the Password field.
The default password is password.
The System Information page displays.

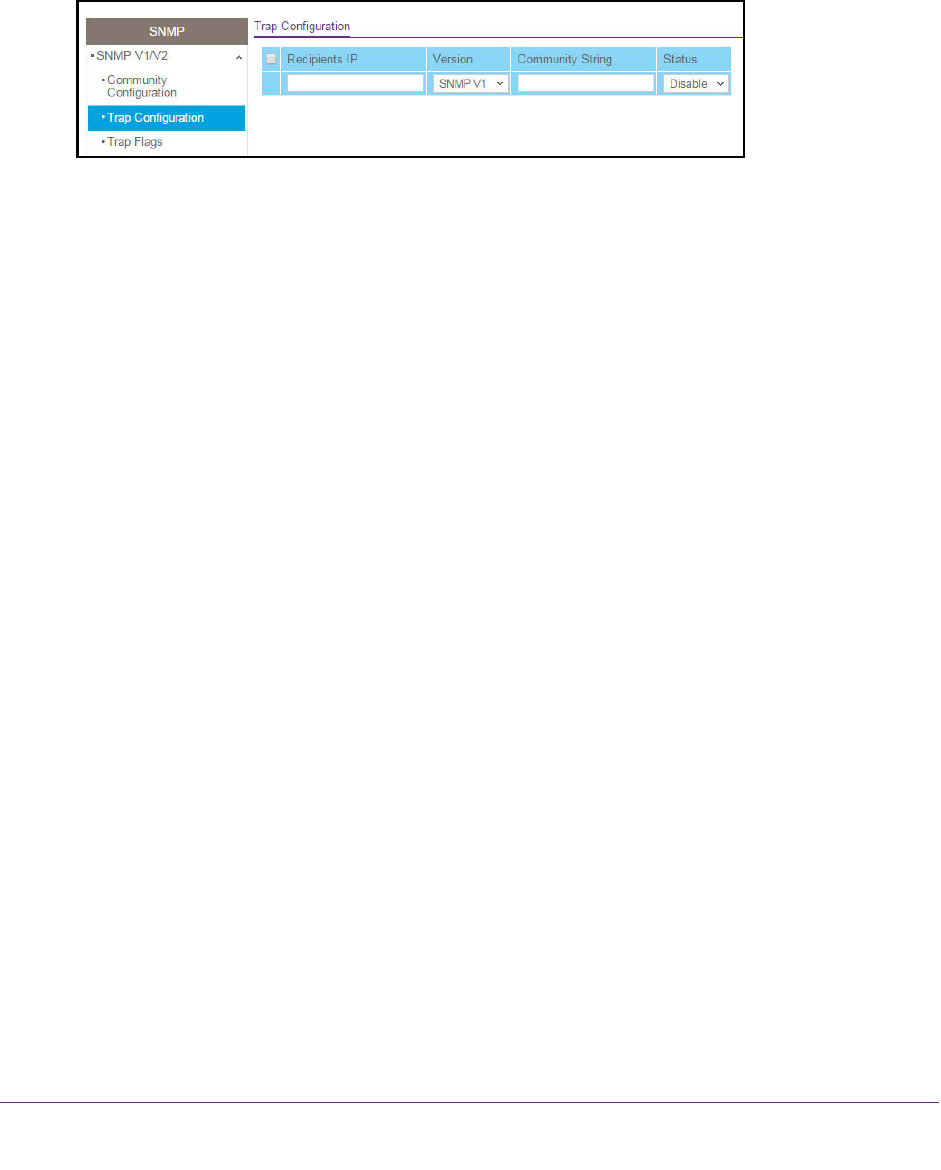

5. Select System > SNMP > SNMP V1/V2 > Trap Configuration.
6. In the Recipients IP field, enter the IPv4 address in the x.x.x.x format to receive SNMP traps
from this device.
7. From the Version menu, select the trap version to be used by the SNMP trap receiver.
• SNMP V1. The switch uses SNMPv1 to send traps to the receiver. The default setting
is SNMP V1.
• SNMP V2. The switch uses SNMPv2 to send traps to the receiver.
8. In the Community String field, specify the name of the SNMP community that includes
the SNMP management host and the SNMP agent on the device.
This name can be up to 16 characters and is case-sensitive.
9. From the Status menu, select Enable to send traps to the receiver or select Disable to
prevent the switch from sending traps to the receiver.
10. Click the Add button.
The receiver configuration is added.
Modify Information About an Existing SNMP Recipient
 To modify information about an existing SNMP recipient:
1. Connect your computer to the same network as the switch.
You can use a WiFi or wired connection to connect your computer to the network, or
connect directly to a switch that is off-network using an Ethernet cable.
2. Launch a web browser.
3. In the address field of your web browser, enter the IP address of the switch.
If you do not know the IP address of the switch, see Change the Default IP Address of the
Switch on page 9.
The login window opens.
4. Enter the switch’s password in the Password field.
The default password is password.
