Monitor the System
250
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2
6. Click the Update button to refresh the page with the latest information about the switch.
7. Click the Clear button to clear all the statistics counters, resetting all switch summary and
detailed statistics to default values.
The discarded packets count cannot be cleared.

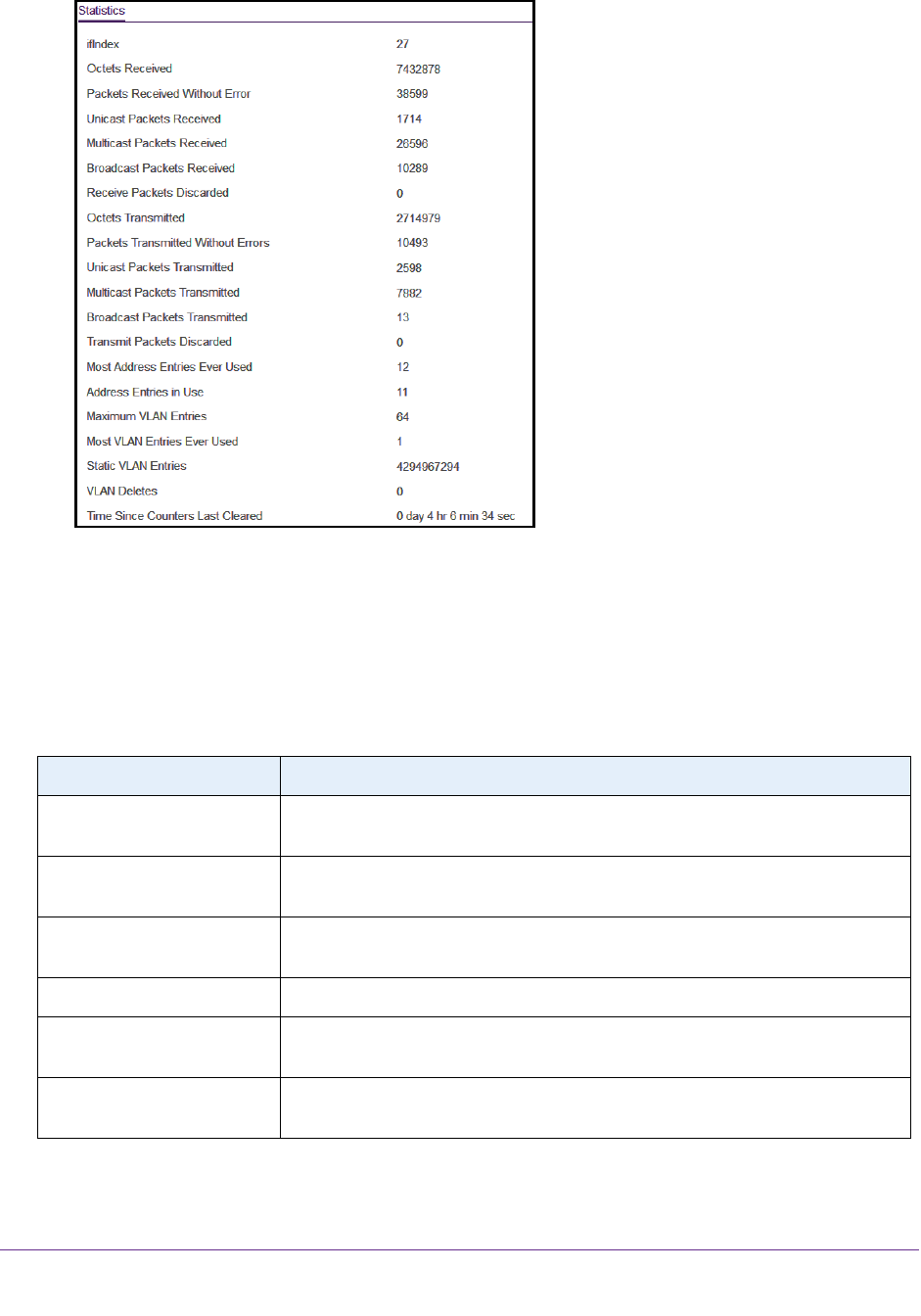

The following table describes the switch statistics on the page.
Table 52. Switch statistics
Field Description
ifIndex The interface index of the interface table entry associated with the processor of
this switch.
Octets Received The total number of octets of data received by the processor (excluding framing
bits, but including FCS octets).
Packets Received Without
Errors
The total number of packets (including broadcast packets and multicast
packets) received by the processor.
Unicast Packets Received The number of subnetwork-unicast packets delivered to a higher-layer protocol.
Multicast Packets Received The total number of packets received that were directed to a multicast address.
This number does not include packets directed to the broadcast address.
Broadcast Packets Received The total number of packets received that were directed to the broadcast
address. This does not include multicast packets.
