The login window opens.
4. Enter the switch’s password in the Password field.
The default password is password.
The System Information page displays.

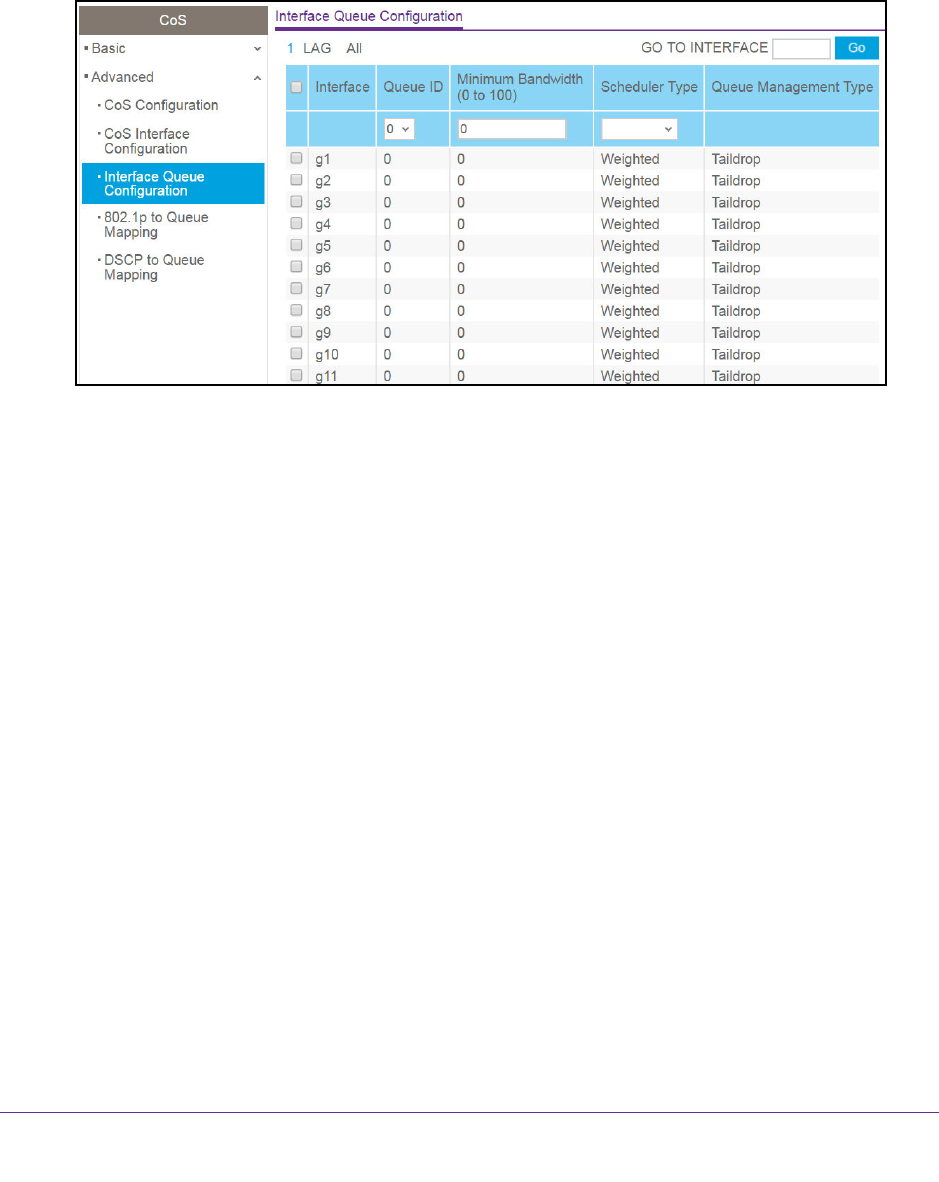

5. Select QoS > CoS > Advanced > Interface Queue Configuration.
6. Click the LAG link to display all LAG interfaces or click the All link to display both all physical
and all LAG interfaces.
7. Select one or more interfaces by taking one of the following actions:
• To configure a single interface, select the check box associated with the port, or type
the port number in the Go To Interface field and click the Go button.
• To configure multiple interfaces with the same settings, select the check box
associated with each interface.
• To configure all interfaces with the same settings, select the check box in the heading
row.
8. From the Queue ID menu, select the queue to be configured.
9. In the Minimum Bandwidth field, specify the minimum guaranteed bandwidth allotted to the
queue.
Setting this value higher than its corresponding maximum bandwidth automatically
increases the maximum to the same value. The default is 0. The valid range is 0 to 100 in
increments of 1. The value 0 means no guaranteed minimum. The sum of the individual
minimum bandwidth values for all queues for the interface cannot exceed the defined
maximum (100).
10. From the Scheduler Type menu, select one of the following options:
• Strict. Services traffic with the highest priority on a queue first.
• Weighted. Weighted round robin associates a weight to each queue. This is the
default setting.
