Configure Quality of Service
154
NETGEAR 24-Port Gigabit Smart Managed Pro Switch with PoE+ and 2 SFP Ports Model GS724TPv2
The System Information page displays.

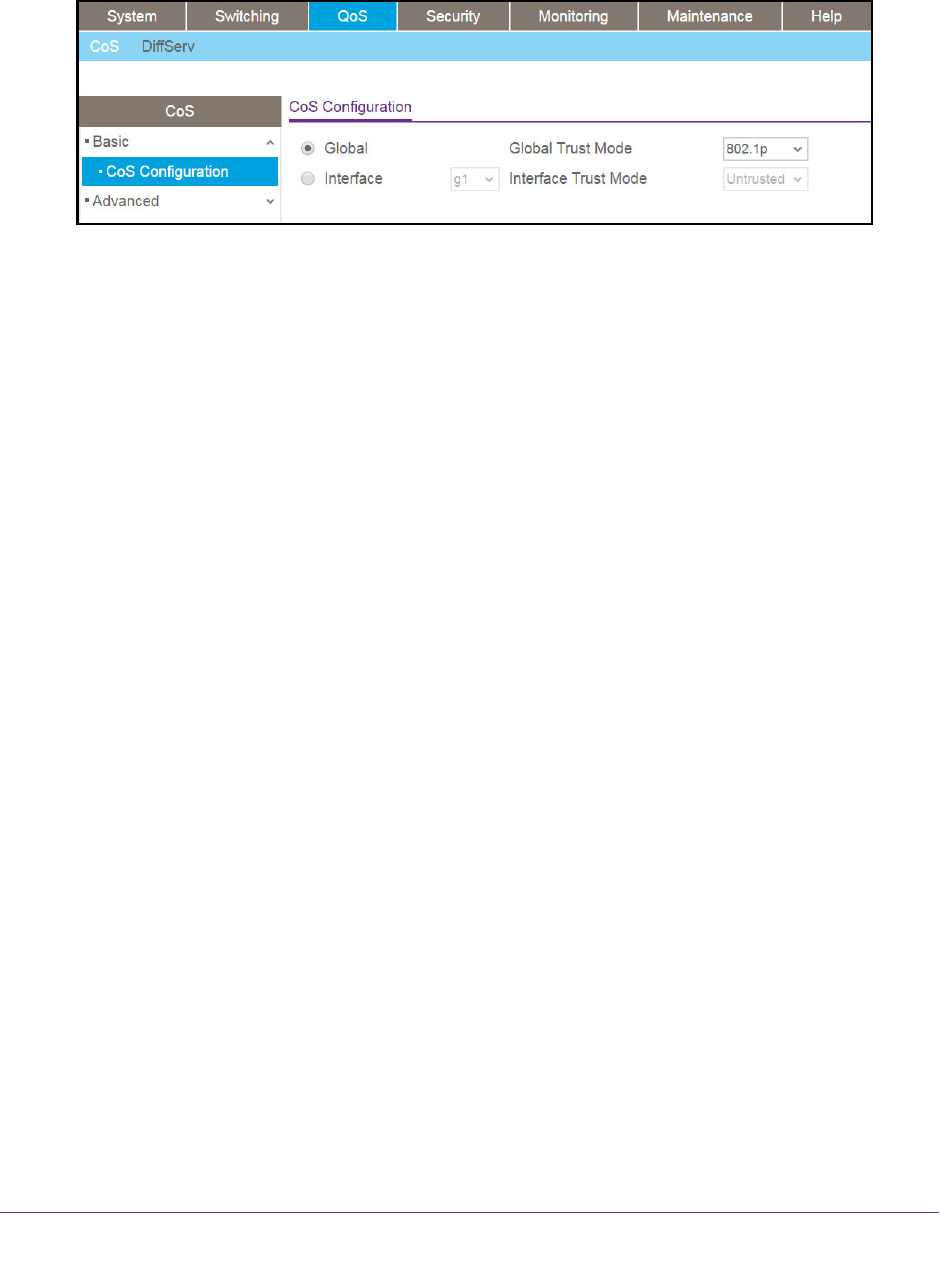

5. Select QoS > CoS > Basic > CoS Configuration.
6. Either configure the same CoS trust mode settings for all CoS-configurable interfaces or
configure CoS settings per interface:
• To configure the same CoS trust mode settings for all CoS configurable interfaces, do
the following:
a. Select the Global radio button.
b. From the Global Trust Mode menu, select one of the following trust mode
options for ingress traffic on the switch:
- Untrusted. Do not trust any CoS packet marking at ingress.
- 802.1p. The eight priority tags that are specified in IEEE 802.1p are p0 to p7.
The QoS setting lets you map each of the eight priority levels to one of seven
internal hardware priority queues. The default mode is 802.1p.
- DSCP. The six most significant bits of the DiffServ field are called the
Differentiated Services Code Point (DSCP) bits.
• To configure CoS settings per interface, do the following:
a. Select the Interface radio button.
b. From the Interface Trust Mode menu, select one of the following trust mode
options:
- Untrusted. Do not trust any CoS packet marking at ingress.
- 802.1p. The eight priority tags that are specified in IEEE 802.1p are p0 to p7.
The QoS setting lets you map each of the eight priority levels to one of seven
internal hardware priority queues. The default mode is 802.1p.
- DSCP. The six most significant bits of the DiffServ field are called the
Differentiated Services Code Point (DSCP) bits.
7. Click the Apply button.
The updated configuration is sent to the switch. Configuration changes take effect
immediately.
