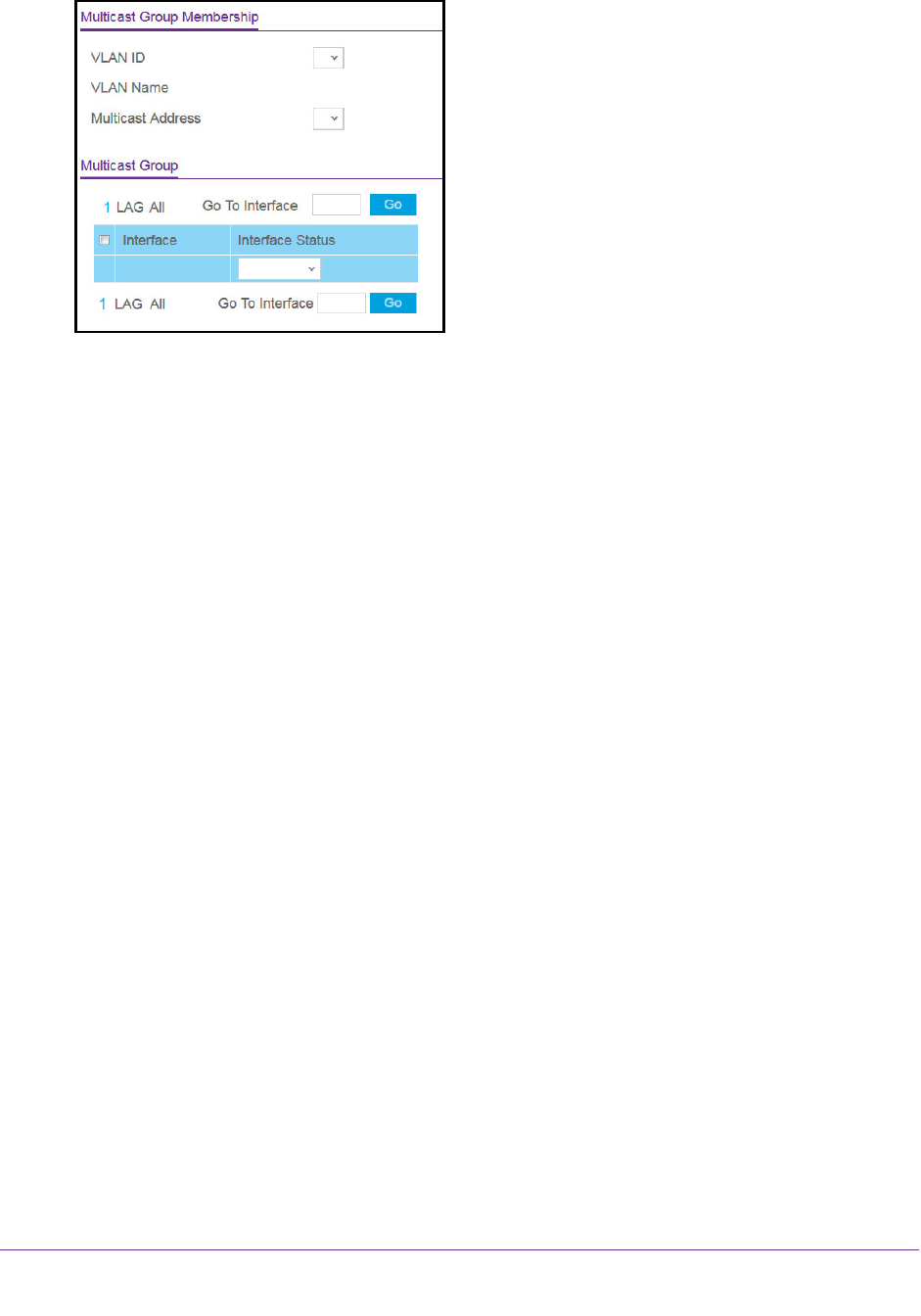

6. From the VLAN ID menu, select the VLAN ID for the VLAN in which the multicast group is
located.
If a name is associated with the VLAN, the name displays in the VLAN Name field.
7. From the Multicast Address menu, select the MAC address that identifies the multicast
group.
8. Select which type of interfaces display onscreen:
• To display physical ports only, click the 1 link.
• To display LAGs only, click the LAG link.
• To display both physical ports and LAGs, click the All link.
9. Select one or more interfaces by taking one of the following actions:
• To configure a single interface, select the check box associated with the interface, or
type the interface number in the Go To Interface field and click the Go button.
• To configure multiple interfaces with the same settings, select the check box
associated with each interface.
• To configure all interfaces with the same settings, select the check box in the heading
row.
10. From the Interface Status menu, select one of the following options:
• Static. The interface becomes a static member of the multicast group on the selected
VLAN.
• Forbidden. The interface is forbidden from joining the multicast group on the selected
VLAN.
• Excluded. The interface is not a static member of the multicast group but could
become a dynamic member of a multicast group on the selected VLAN. This is the
default state.
Note: If an interface was added dynamically to the multicast group as a result
of IGMP or MLD snooping, the status of the interface is Dynamic. You
cannot select this status manually.
