Operation Manual
Table Of Contents
- AC750 Dual Band WiFi Range Extender
- Table of Contents
- 1. Overview
- 2. Get Started
- 3. Network Settings
- View Connected Devices
- Boost Your Video Streaming With FastLane Technology
- View WiFi Settings
- Change the WiFi Network Names
- Turn Off the SSID Broadcast to Create a Hidden Network
- Disable or Enable the WiFi Radios
- Change the WiFi Speed
- Use WPS to Add a Computer to the Extender’s WiFi Network
- Deny Access to a Computer or WiFi Device
- Set Up an Access Schedule
- Change the Extender’s Device Name
- Set Up the Extender to Use a Static IP Address
- Use the Extender With MAC Filtering or Access Control
- 4. Maintain and Monitor the Extender
- Change the Extender User Name and Password
- Turn Password Protection Off and On
- Recover a Forgotten User Name or Password
- Automatically Adjust for Daylight Saving Time
- Manually Set the Extender Clock
- Back Up and Manage the Extender Configuration
- Return the Extender to Its Factory Default Settings
- Update the Firmware
- Restart the Extender Remotely
- 5. FAQs and Troubleshooting
- A. Factory Settings and Technical Specifications
Network Settings
21
AC750 Dual Band WiFi Range Extender
When you enable FastLane Technology, two options are available:
• Use the 2.4 GHz band to connect the extender to the WiFi devices and use the 5 GHz
band to connect the extender to the WiFi router. Use this mode if your WiFi router
supports the 5 GHz band but the devices that you want to use for gaming and streaming
support the 2.4 GHz band.
• Use the 5 GHz band to connect the extender to the WiFi devices and use the 2.4 GHz
band to connect the extender to the WiFi router. Use this mode if the devices that you
want to use for gaming and streaming support the 5 GHz band but your WiFi router
supports the 2.4 GHz band.
To activate FastLane mode:
1. On a computer or WiFi device that is connected to the extender network, launch a web
browser
.
2. In the address field of your browser
, enter www.mywifiext.net.
A login window opens.
3. Enter your email address and password and click the LOG IN button.
The Status page displays.

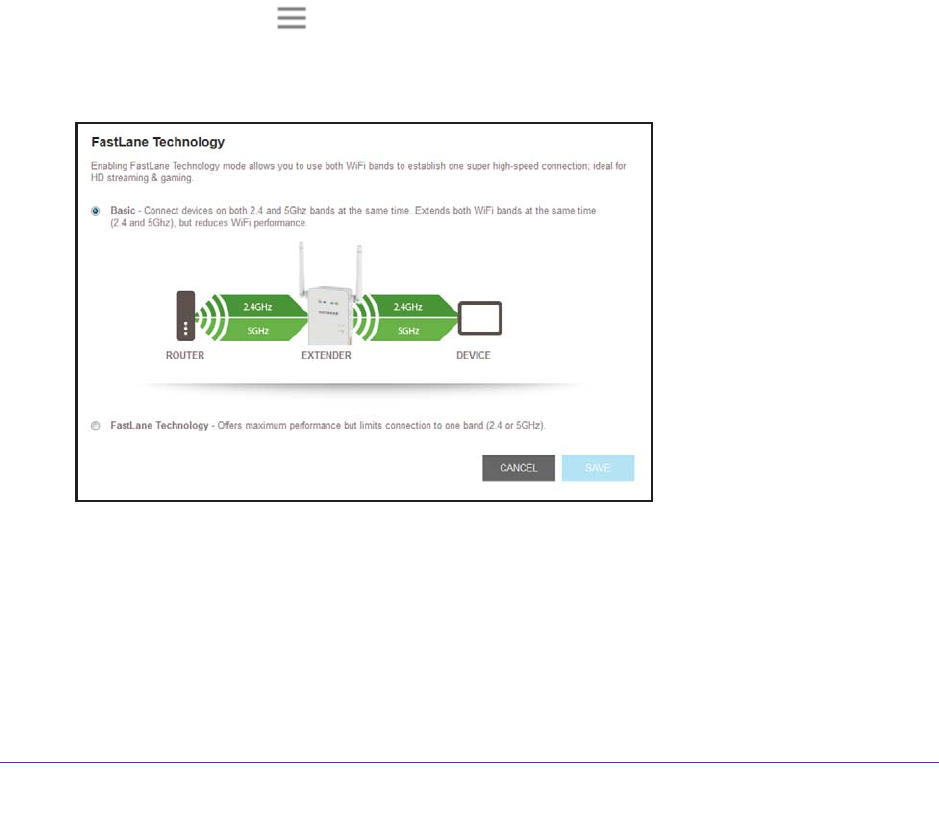

4. Click the Menu icon
.
The extender menu displays.
5. Select Do More > FastLane.
6. Select the FastLane Technology radio button.
The page adjusts and displays two more radio buttons.
7. Select a radio button:
• Router-to-Extender in 2.4 GHz only and Extender-to-Device in 5 GHz only
• Router to Extender in 5 GHz only and Extender-to-Device in 2.4 GHz only
