3-2 Connecting the Router to the Internet
Each device such as a telephone, fax machine, answering machine, or caller ID display will require
an ADSL microfilter.
Note: Do not connect the DG834 to the ADSL line through a microfilter unless the microfilter is a
combination microfilter/splitter specifically designed for this purpose. Doing so will prevent the
built-in ADSL modem in the DG834 from establishing a connection to the Internet. If you have
any doubts about this, connect the DG834 directly to the ADSL line.
ADSL Microfilter with Built-In Splitter

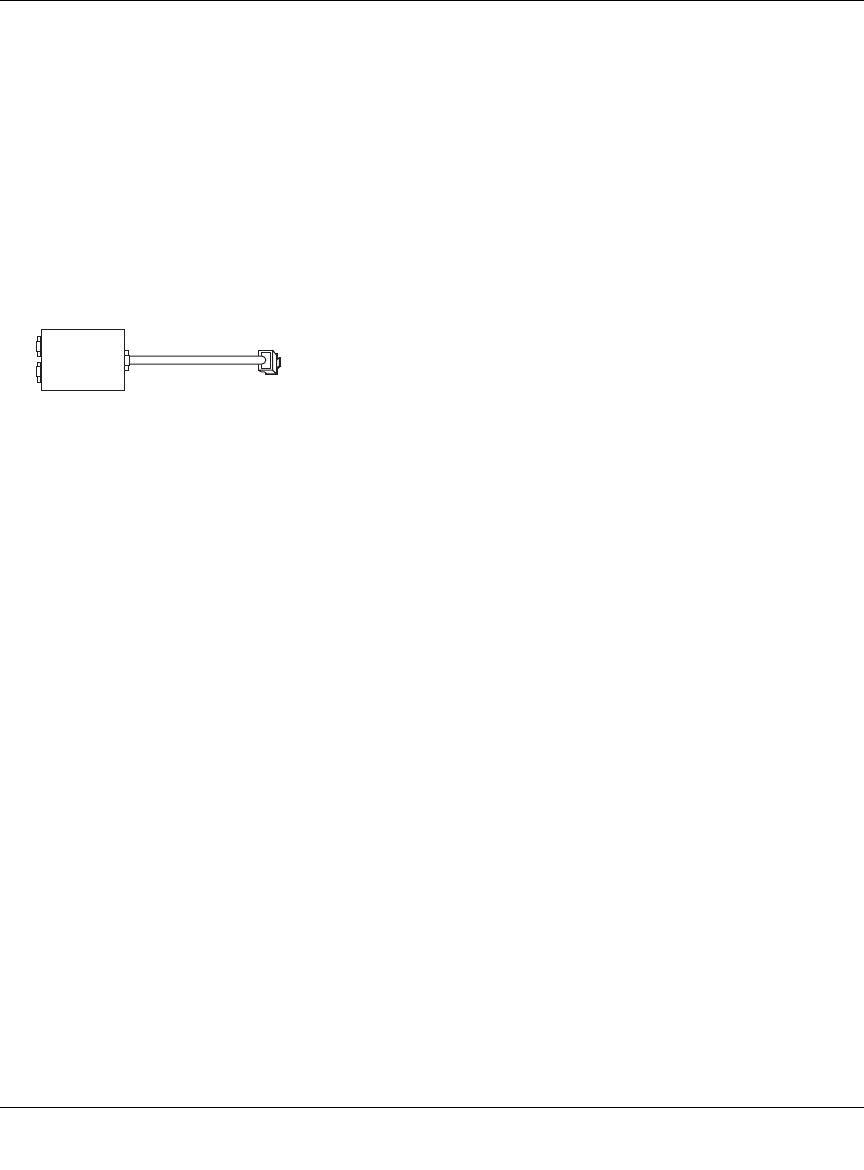

Figure 3-2: ADSL microfilter with built-in splitter
Use an ADSL microfilter with built-in splitter when there is a single wall outlet which must
provide connectivity for both the DG834 and telephone equipment.
Ethernet Cabling Requirements
The DG834 ADSL router connects to your Ethernet LAN via twisted-pair cables. If the computer
will connect to your network at 100 Mbps, you must use a Category 5 (CAT5) cable such as the
one provided with your router.
Computer Hardware Requirements
To use the DG834 ADSL router on your network, each computer must have an installed Ethernet
adapter and an Ethernet cable, or a 802.11g wireless adapter.
LAN Configuration Requirements
For the initial connection to the Internet and configuration of your router, you need to connect a
computer to the router which is set to automatically get its TCP/IP configuration from the router
via DHCP.
Note: Please refer to Appendix C, “Preparing Your Network” for assistance with DHCP
configuration.
Phone
DSL
Line
