Quick Reference Guide

Reference Manual for the ADSL Modem Wireless Router DG834G
NETGEAR VPN Configuration B-21
v1.0, January 2006

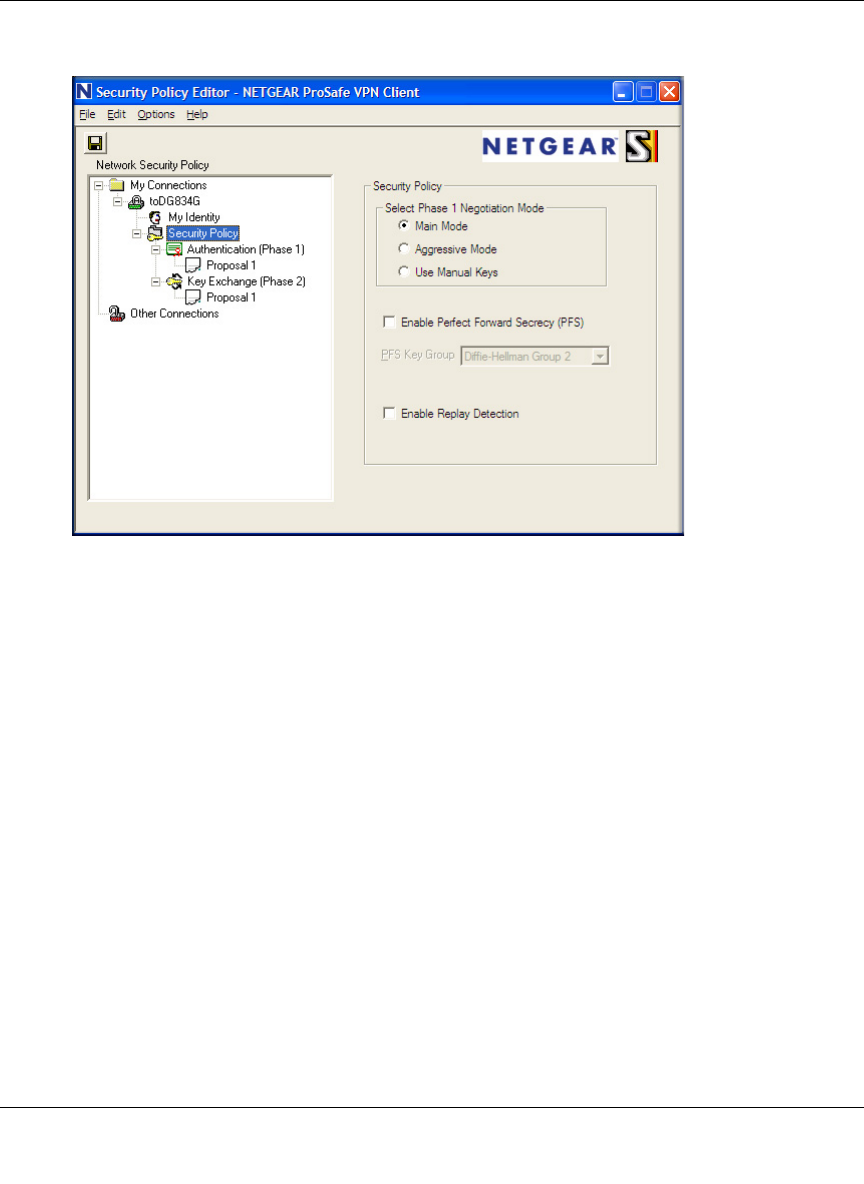

b. Click on the Security Policy subheading to show the Security Policy menu.
c. Select the Main Mode in the Select Phase 1 Negotiation Mode check box.
4. Configure the VPN Client Identity.
In this step, you will provide information about the remote VPN client PC. You will need to
provide the Pre-Shared Key that you configured in the DG834G v3 and either a fixed IP
address or a “fixed virtual” IP address of the VPN client PC.
Figure B-17
