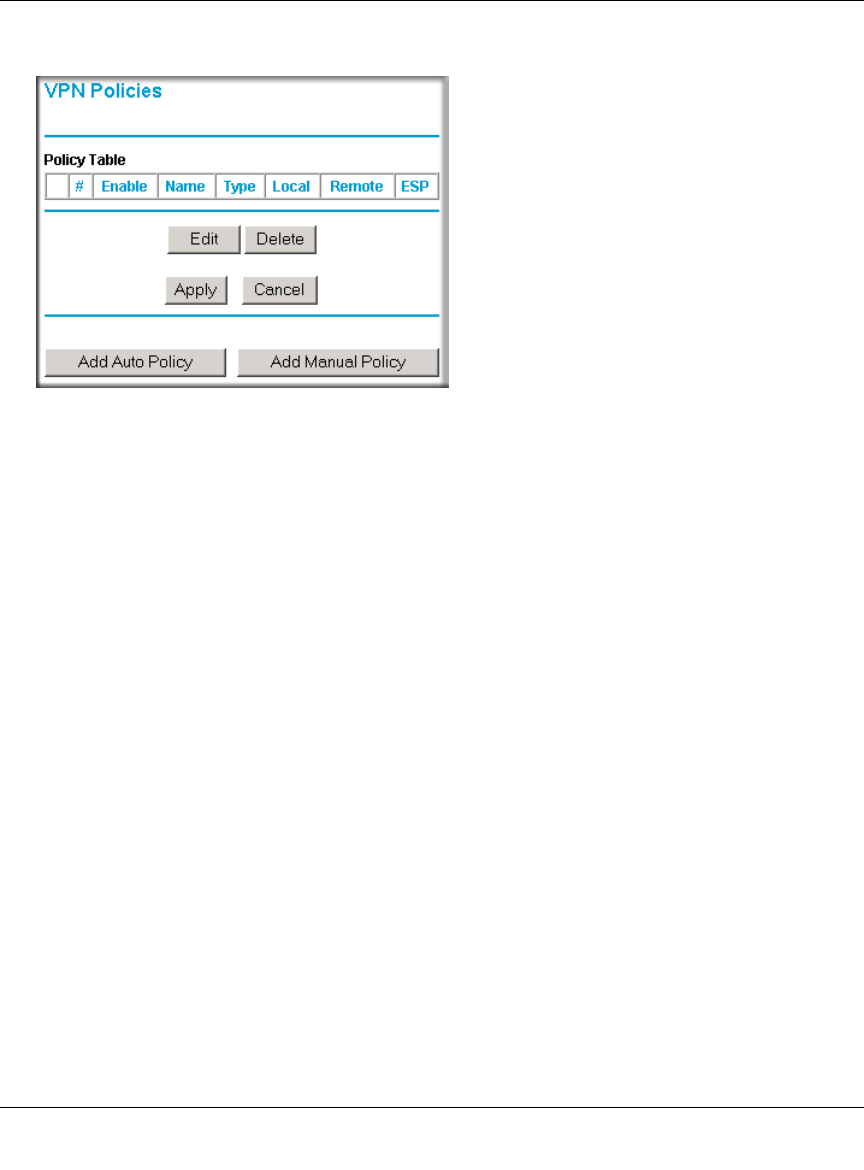

2. Open the DG834G v3 on LAN A management interface and click on VPN Policies.
3. Click Add Auto Policy.
4. Enter policy settings (see Figure 7-43).
• General
— Policy Name = GtoG
— Remote VPN Endpoint Address Type = Fixed IP Address
— Remote VPN Endpoint Address Data = 22.23.24.25
• Local LAN – use default setting
• Remote LAN
— IP Address = select Subnet address from the pulldown menu.
— Start IP address = 192.168.3.1
— Subnet Mask = 255.255.255.0
•IKE
— Direction = Initiator and Responder
— Exchange Mode = Main Mode
— Diffie-Hellman (DH) Group = Group 2 (1024 Bit)
— Local Identity Type = use default setting
— Remote Identity Type = use default setting
• Parameters
— Encryption Algorithm = 3DES
Figure 7-42
