Reference Manual for the Model DG834 ADSL Firewall Router
5-6 Managing Your Network
Click the Show Statistics button to display router usage statistics, as shown in Figure 5-3 below:

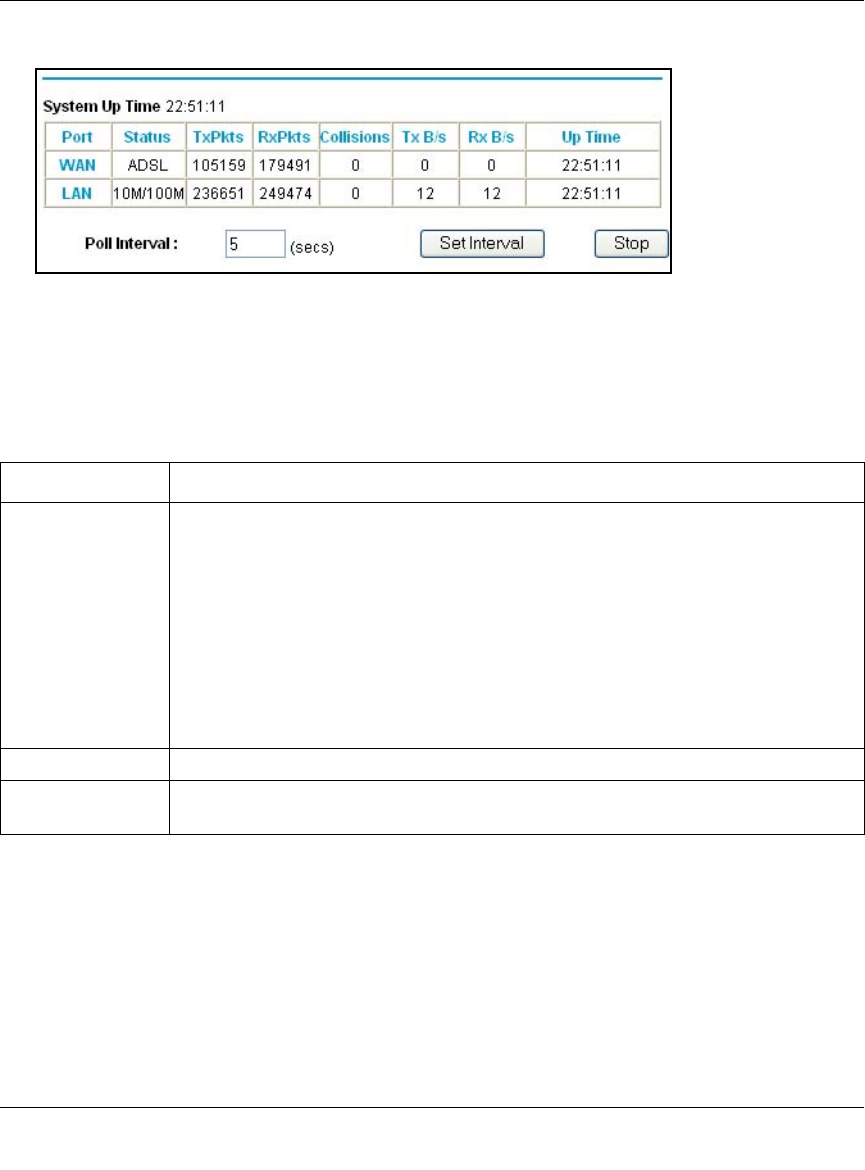

Figure 5-4: Router Statistics screen
This screen shows the following statistics:.
Table 5-1. Router Statistics Fields
Field Description
WAN, LAN, or
Serial Port
The statistics for the WAN (Internet), LAN (local), and Serial ports. For each port, the
screen displays:
Status The link status of the port.
TxPkts The number of packets transmitted on this port since reset or manual clear.
RxPkts The number of packets received on this port since reset or manual clear.
Collisions The number of collisions on this port since reset or manual clear.
Tx B/s The current line utilization—percentage of current bandwidth used on this port.
Rx B/s The average line utilization for this port.
Up Time The time elapsed since the last power cycle or reset.
Poll Interval Specifies the interval at which the statistics are updated in this window. Click Stop to
freeze the display.
