Reference Manual for the Model DG834 ADSL Firewall Router
3-6 Connecting the Router to the Internet
.

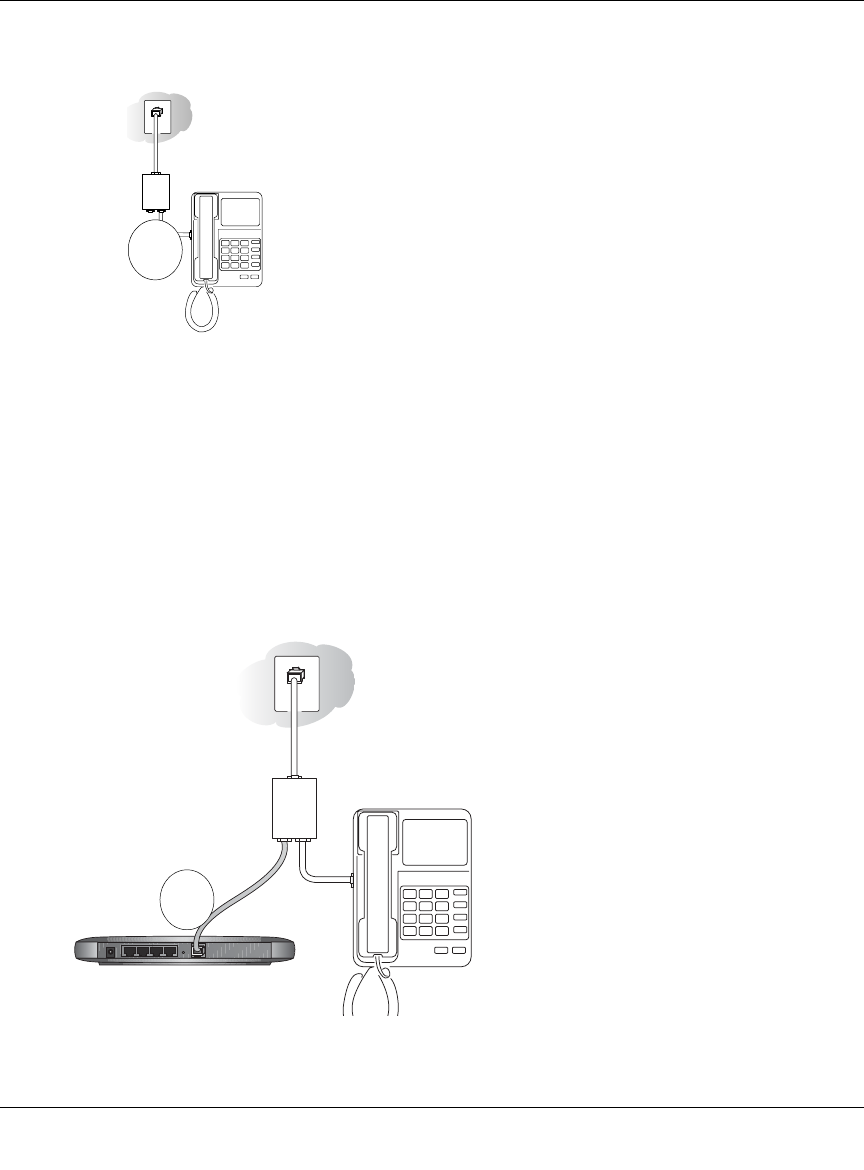

Figure 3-4: Connecting an ADSL microfilter and phone
Note: To use a one-line filter with a separate splitter, insert the splitter into the phone
outlet, connect the one-line filter to the splitter, and connect the phone to the filter.
2. CONNECT THE DG834 TO THE INTERNET.
Note: Improperly connecting a filter to your DG834 ADSL router will block your ADSL
connection.
a. Turn off your computer.
b. Connect the ADSL port of the DG834 to the ADSL port (B) of the two-line filter:
Figure 3-5: Connecting the DG834 ADSL router to an ADSL microfilter and phone
Phone
DSL
Line
A
3KRQH
'6/
/LQH
!$3,&IREWALL2OUTER$'
B
