Manage Your Network
55
N300 Wireless Router

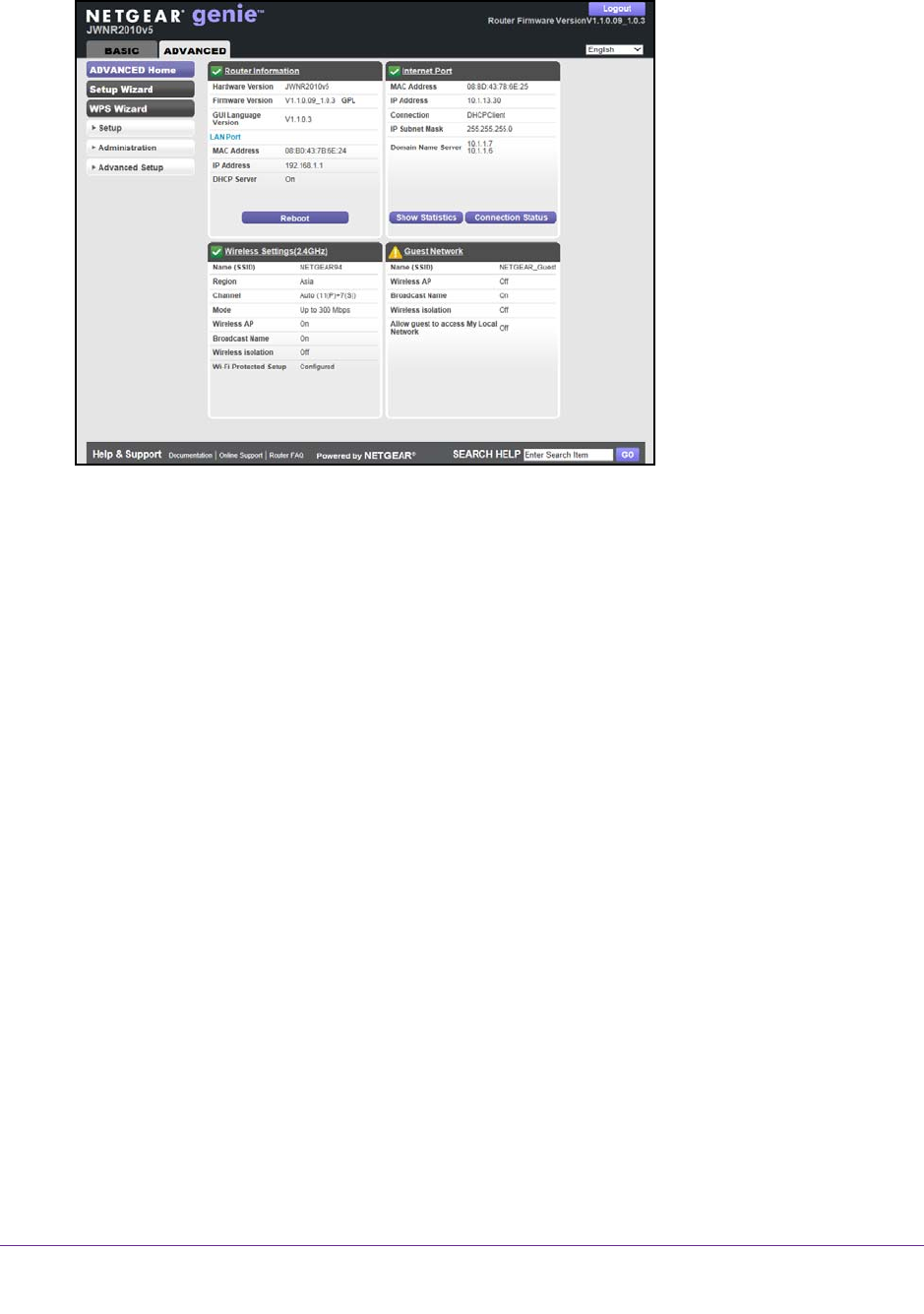

4. Click the ADVANCED tab.
The Router Information pane displays the following information:
• Hardware V
ersion. The router model.
• Firmware Version.
The version of the router firmware. It changes if you upgrade the
router firmware.
• GUI Language V
ersion. The localized language of the router user interface.
• LAN Port:
- MAC Address.
The Media Access Control address for the Ethernet (LAN) port.
This address is the unique physical address that the Ethernet (LAN) port of the
router uses.
- IP Address.
The IP address that the Ethernet (LAN) port of the router uses. The
default is 192.168.1.1.
- DHCP Server. Identifies whether the router’
s built-in DHCP server is active for the
LAN-attached devices.
View the Internet Connection Settings
To view the Internet connection settings:
1. Launch a web browser from a computer or wireless device that is connected to the
network.
2. T
ype http://www.routerlogin.net or http://www.routerlogin.com.
A login screen displays.
3. Enter the router user name and password.
