Networking
35
N300 Wireless Router

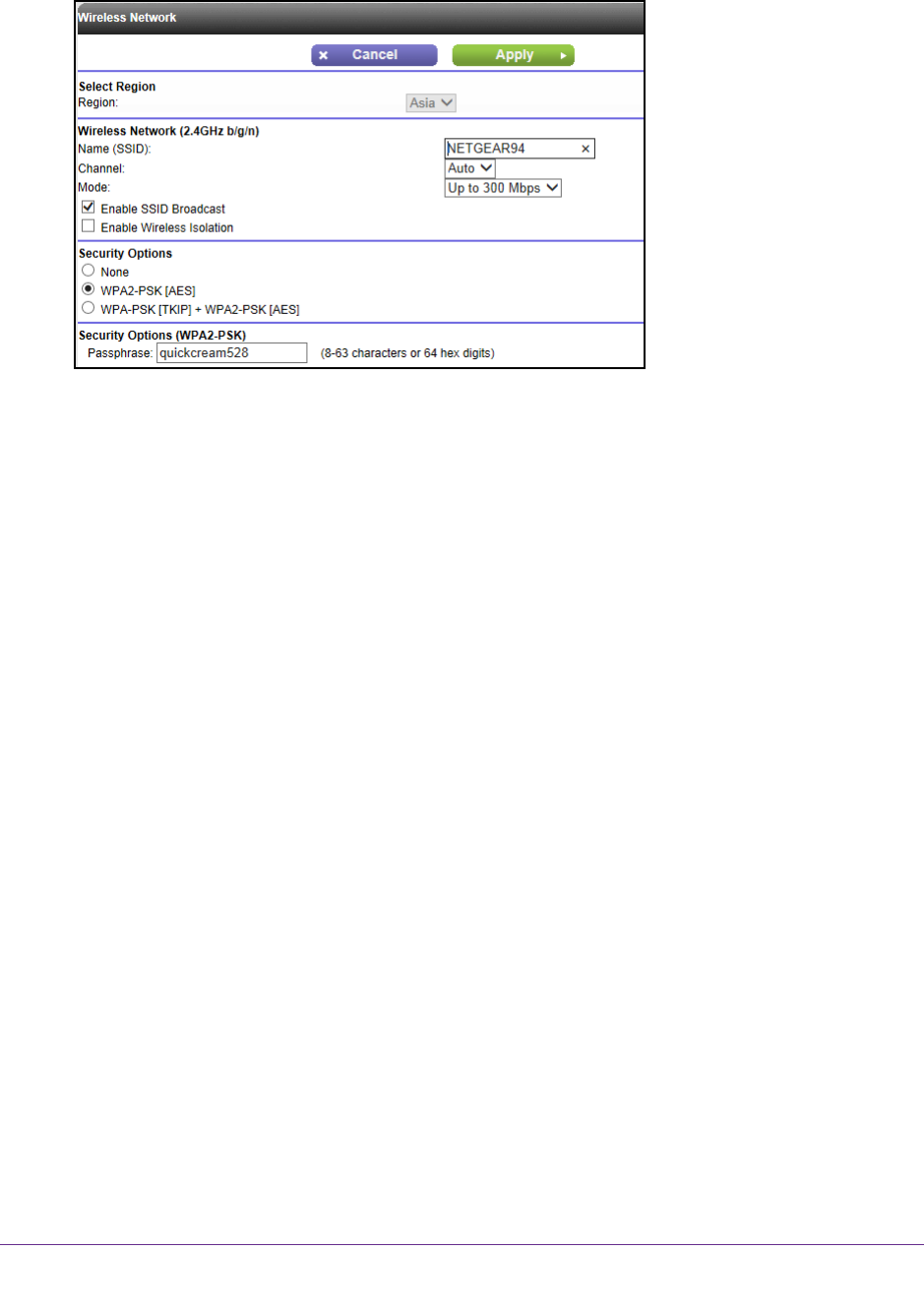

4. Select Wireless.
5. In the Region list, select your region. In some locations, you cannot change this setting.
6. T
o change the network name (SSID), type a new name in the Name (SSID) field.
The name can be up to 32 characters long and it is case-sensitive. The default SSID is
randomly generated and is on the product label. If you change the name, make sure to
write down the new name and keep it in a safe place.
7. T
o change the wireless channel, select a number in the Channel list.
In some regions, not all channels are available. Do not change the channel unless you
experience interference (shown by lost connections or slow data transfers). If this
happens, experiment with dif
ferent channels to see which is the best.
When you use multiple access points, it is better if adjacent access points use different
channels to reduce interference.
The recommended channel spacing between adjacent
access points is four channels (for example, use Channels 1 and 5, or 6 and 10).
8. T
o change the mode, select it from the Mode list.
9. T
o control the SSID broadcast, select or clear the Enable SSID Broadcast check box.
When this check box is selected, the router broadcasts its network name (SSID) so that it
displays when you scan for local WiFi networks on your computer or wireless device.
10. T
o prevent computers and wireless devices on the network from accessing each other,
select the Enable Wireless Isolation check box.
11. Click the Apply button.
Your settings are saved.
If you connected wirelessly to the network and you changed the SSID, you are
disconnected from the network.
12. Make sure that you can connect wirelessly to the network with its new settings.
