To set the priority of data transfers by the type of protocol:
1. Start the XAVN2001 Powerline Utility and wait for the utility to detect the Powerline AV 200
Wireless-N Extenders connected to the network.
2. From the Advanced Settings tab, the Advanced Settings tab, click the QoS arrow.
3. To set the traffic prioritization rule into the selected Powerline AV 200 Wireless-N Extender
device, specify the priority in the QoS Setup section of the screen.
4. Click Apply.
These options only apply to QoS-configured business networks. IEEE 802.1p uses prioritization
bits in Layer-2 frames. Type of Service routing (ToS) uses prioritization bits in Layer-3 IP packets.
The deprecated ToS values range from 0 to 7.

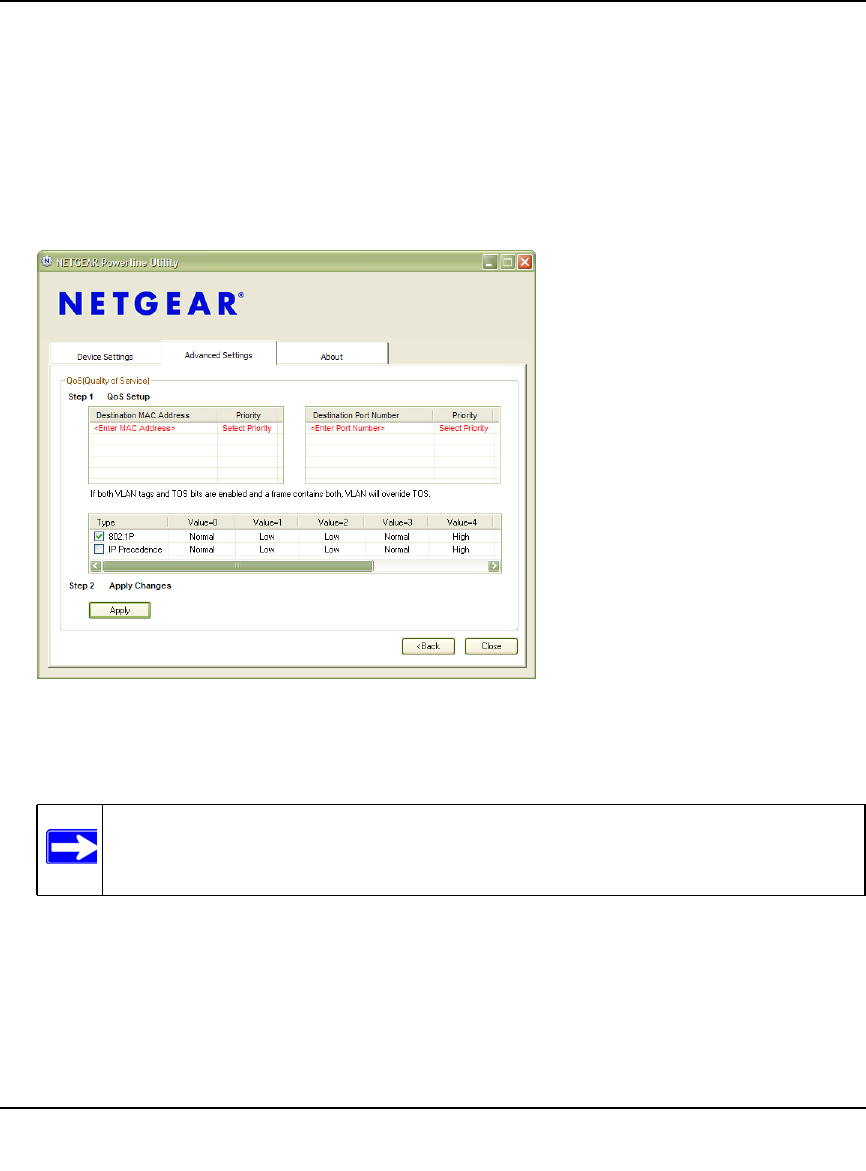

Figure 2-11
Note: QoS settings are applied only to the device that is selected on the QoS tab.
